Arcodyn 500G

Arcodyn 500G; Telefunken (ID = 1806767) Speaker-P
Use red slider bar for more.
Arcodyn 500G; Telefunken (ID = 1806767) Speaker-P

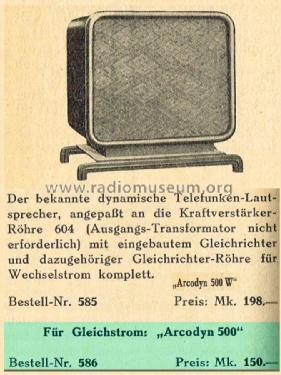

Telefunken: Arcodyn 500G [Speaker-P] ID = 1806767 675x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arcodyn 500G, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Schnorr 1932

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1931/1932 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage Direct Current supply (DC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Arcodyn 500G - Telefunken Deutschland TFK,
Shape Tablemodel, with any shape - general.
Price in first year of sale 150.00 RM

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
