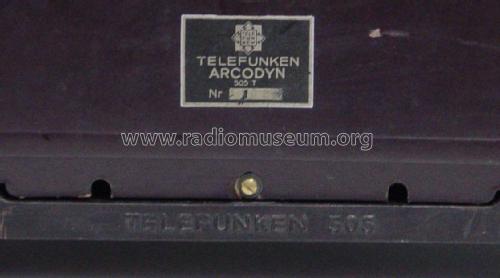

Arcodyn 505T

Arcodyn 505T; Telefunken (ID = 1059351) Speaker-P Arcodyn 505T; Telefunken (ID = 1059354) Speaker-P
Arcodyn 505T; Telefunken (ID = 1742171) Speaker-P Arcodyn 505T; Telefunken (ID = 1784564) Speaker-P
Use red slider bar for more.
Arcodyn 505T; Telefunken (ID = 1059351) Speaker-P
Telefunken: Arcodyn 505T [Speaker-P] ID = 1059351 930x812
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arcodyn 505T, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1930–1932 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage Direct Current supply (DC) / 110; 125; 150; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Arcodyn 505T - Telefunken Deutschland TFK,
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 400 x 440 x 185 mm / 15.7 x 17.3 x 7.3 inch
Net weight (2.2 lb = 1 kg) 9.2 kg / 20 lb 4.2 oz (20.264 lb)
Price in first year of sale 125.00 RM
Mentioned in Telefunken Prospekt Druck Nr. 604

Model page created by Reiner Scholz. See "Data change" for further contributors.
