Arcophon 11
Use red slider bar for more.
Telefunken: Arcophon 11 [Speaker-P] ID = 28306 600x596
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1932/1933 | Category: Loudspeaker, headphone or earphone |
| Details | |
|---|---|

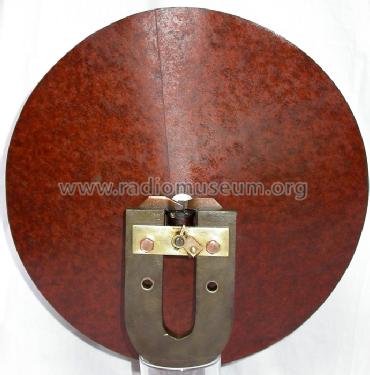

| Loudspeaker | Magnetic loudspeaker (reed) generic. |
| Power out | |
| from Radiomuseum.org | Model: Arcophon 11 - Telefunken Deutschland TFK, |

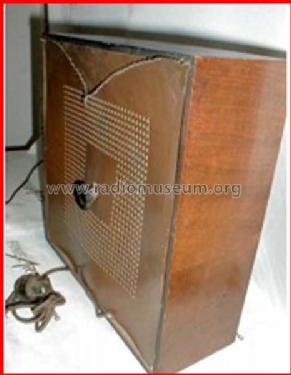

| Material | Wooden case |
| Dimensions (WHD) | 370 x 370 x 130 mm / 14.6 x 14.6 x 5.1 inch |
| Notes | Konusmembrane-Lsp. |
| Net weight (2.2 lb = 1 kg) | 2.8 kg / 6 lb 2.7 oz (6.167 lb) |
| Price in first year of sale | 34.00 ATS |
| Source of data | Döring-Film-Werke 1927 / Radiokatalog Band 1, Ernst Erb |

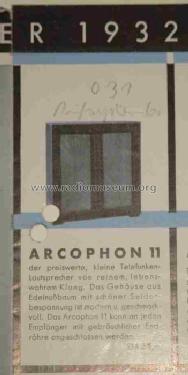

| Mentioned in | siehe Telefunken Prospekt in der Anlage |
| Picture reference | Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet. |
