Arcophon RfL3

Arcophon RfL3; Telefunken (ID = 51968) Speaker-P Arcophon RfL3; Telefunken (ID = 51969) Speaker-P
Arcophon RfL3; Telefunken (ID = 79125) Speaker-P Arcophon RfL3; Telefunken (ID = 134654) Speaker-P
Arcophon RfL3; Telefunken (ID = 134655) Speaker-P Arcophon RfL3; Telefunken (ID = 134657) Speaker-P
Arcophon RfL3; Telefunken (ID = 321239) Speaker-P Arcophon RfL3; Telefunken (ID = 321240) Speaker-P
Arcophon RfL3; Telefunken (ID = 321241) Speaker-P Arcophon RfL3; Telefunken (ID = 321246) Speaker-P
Use red slider bar for more.

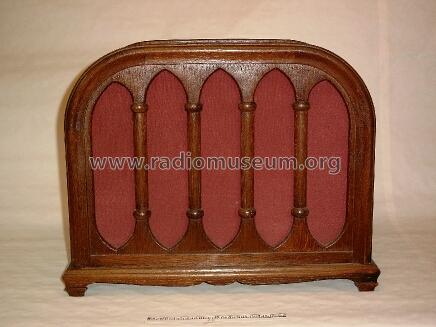

Arcophon RfL3; Telefunken (ID = 51968) Speaker-P
Telefunken: Arcophon RfL3 [Speaker-P] ID = 51968 436x327
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arcophon RfL3, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1927/1928 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed

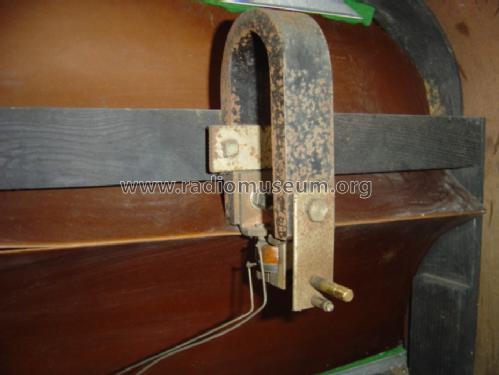

Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: Arcophon RfL3 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 390 x 200 mm / 19.3 x 15.4 x 7.9 inch
Notes

Falzmembran LS. Baugleich mit Siemens Protos.

Impedanz: 4,3 kOhm/1 kHz.
Ohmscher Widerstand: 730 Ohm.

Price in first year of sale 75.00 RM
Collectors' prices
External source of data Konrad Birkner
Source of data Katalog Prohaska 1928/29

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
