Armonica 530

Armonica 530; Telefunken Italia, (ID = 367671) Radio

Armonica 530; Telefunken Italia, (ID = 367672) Radio

Armonica 530; Telefunken Italia, (ID = 367936) Radio

Armonica 530; Telefunken Italia, (ID = 367939) Radio

Armonica 530; Telefunken Italia, (ID = 367940) Radio

Armonica 530; Telefunken Italia, (ID = 367941) Radio

Armonica 530; Telefunken Italia, (ID = 367942) Radio

Armonica 530; Telefunken Italia, (ID = 367943) Radio

Armonica 530; Telefunken Italia, (ID = 367944) Radio

Armonica 530; Telefunken Italia, (ID = 367945) Radio
Armonica 530; Telefunken Italia, (ID = 566196) Radio Armonica 530; Telefunken Italia, (ID = 566510) Radio
Armonica 530; Telefunken Italia, (ID = 566509) Radio Armonica 530; Telefunken Italia, (ID = 566194) Radio
Armonica 530; Telefunken Italia, (ID = 566195) Radio Armonica 530; Telefunken Italia, (ID = 566513) Radio
Armonica 530; Telefunken Italia, (ID = 566738) Radio Armonica 530; Telefunken Italia, (ID = 566739) Radio
Armonica 530; Telefunken Italia, (ID = 566741) Radio Armonica 530; Telefunken Italia, (ID = 1068982) Radio
Use red slider bar for more.
Armonica 530; Telefunken Italia, (ID = 566196) Radio

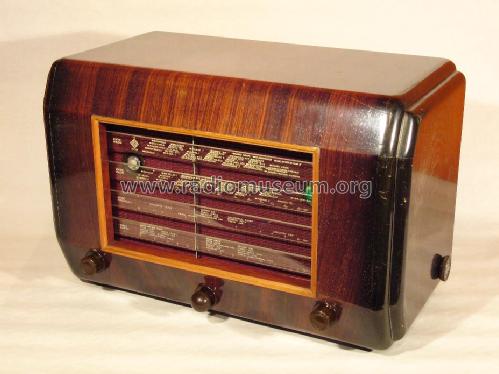

Telefunken Italia,: Armonica 530 [Radio] ID = 566196 929x697
Select picture or schematic to display from thumbnails on the right and click for download.
For model Armonica 530, Telefunken Italia, Milano

Country:  Italy
Manufacturer / Brand:  Telefunken Italia, Milano
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: WE20 WE19 WE18 WE15 WE55
Main principle Superheterodyne (common); ZF/IF 496 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 160; 220; 280 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Armonica 530 - Telefunken Italia, Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 580 x 390 x 320 mm / 22.8 x 15.4 x 12.6 inch
Notes

La WE18 è una valvola con 2 funzioni: Indicatore di sintonia "Occhio Magico" e pentodo usato in questo apparecchio come preamplificatore di bassa frequenza.
Onde medie suddivise in due sottogamme, più onde tropicali e onde corte.

Price in first year of sale 1'600.00 ITL
Source of data Guida Pratica Antique Radio II (2000)

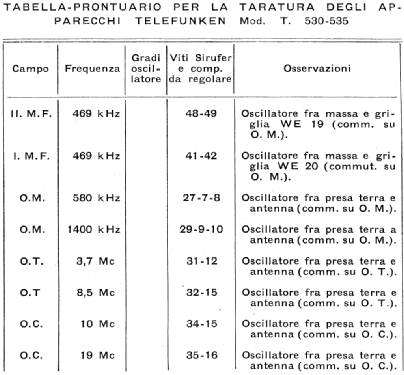

Literature/Schematics (1) - - Manufacturers Literature (D.E. Ravalico: Servizio Radiotecnico vol. II. Radioriparazioni. 8^ Edizione. Hoepli, Milano, 1952.)
Literature/Schematics (2) Il Radio Libro, (Ravalico) 6a edizione 1942

Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
