B744GWK-P7

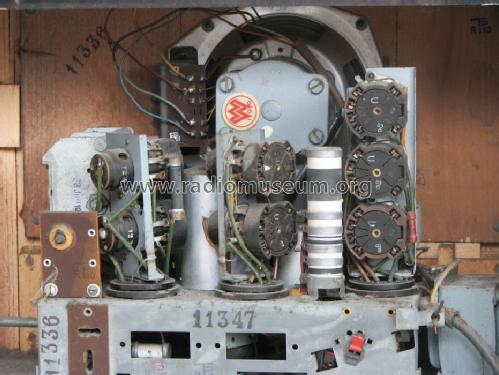

B744GWK-P7; Telefunken (ID = 751672) Radio B744GWK-P7; Telefunken (ID = 751676) Radio
B744GWK-P7; Telefunken (ID = 751673) Radio B744GWK-P7; Telefunken (ID = 257391) Radio
B744GWK-P7; Telefunken (ID = 751687) Radio
Use red slider bar for more.

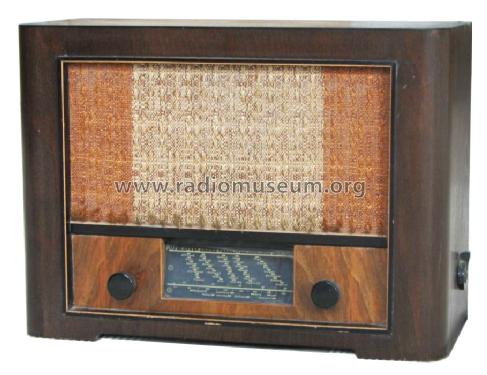

B744GWK-P7; Telefunken (ID = 751672) Radio
Telefunken: B744GWK-P7 [Radio] ID = 751672 910x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model B744GWK-P7, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: RV12P2000 RV12P2000 RV12P2000 RV12P2000 RV12P2000 RV12P2000 RV12P2000
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B744GWK-P7 - Telefunken Deutschland TFK,
Material Wooden case
Dimensions (WHD) 387 x 277 x 187 mm / 15.2 x 10.9 x 7.4 inch
Notes B (Bayern) bei Geräten aus Dachau
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Price in first year of sale 475.00 RM
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk Nr. 30 von 1948
Picture reference Eine Abbildung findet sich im Doppelband "Radio von gestern"
