bajazzo compact 101

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1972–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28958

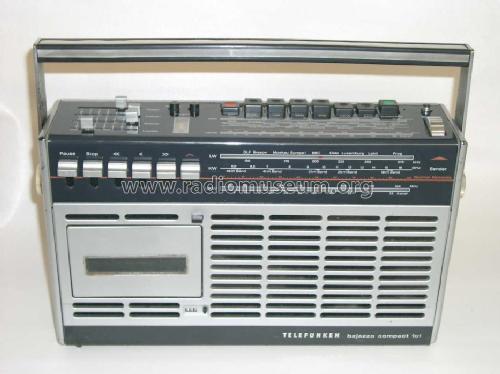

• Picture

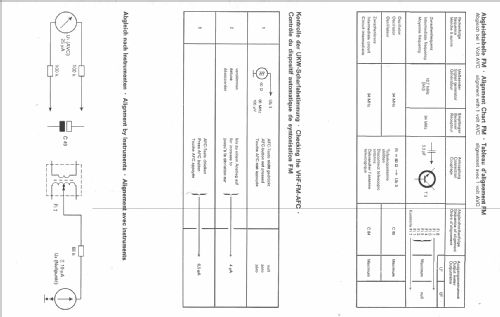

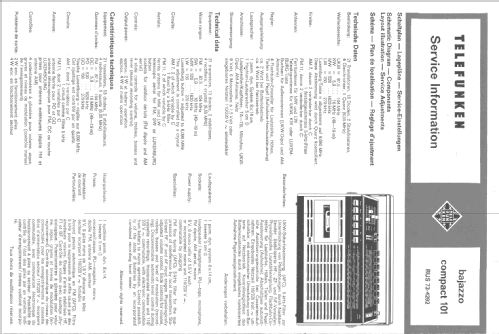

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

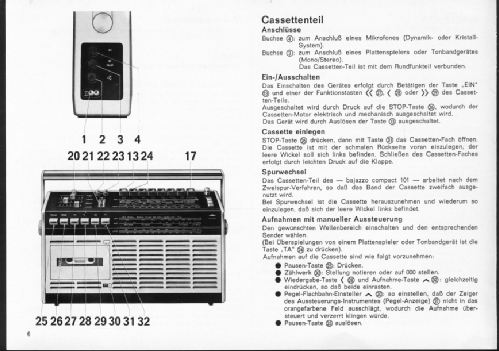

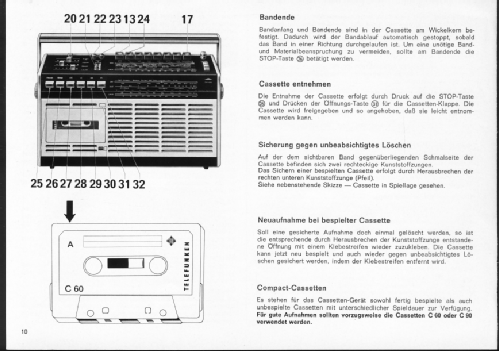

• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 6×1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: bajazzo compact 101 - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 354 x 216 x 90 mm / 13.9 x 8.5 x 3.5 inch

• Notes

• Quarzstabilisierte Stationstaste für 'Radio Luxemburg'; Ausgangsleistung bei Netzbetrieb: 4 W.

  2 Lautsprecher: 1 Oval 8 x 14 cm, 1 Hochtöner 5 cm Durchmesser

• Net weight (2.2 lb = 1 kg)
• 4.3 kg / 9 lb 7.5 oz (9.471 lb)

• Price in first year of sale
• 398.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973
