Bajazzo CR850

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Data
Forum
Pictures
Collections

  • Year
  • 1981
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 145436

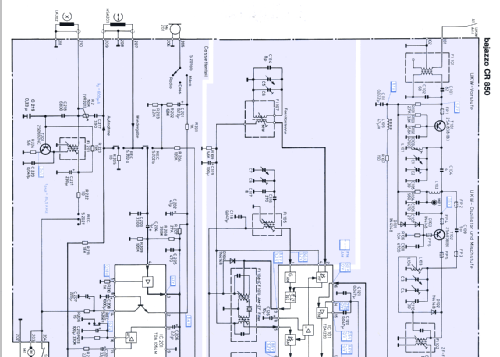

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 / C: 6 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Bajazzo CR850 - Telefunken Deutschland TFK,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 320 x 195 x 85 mm / 12.6 x 7.7 x 3.3 inch
  • Notes
  • AM/FM-Mono-Radio-Recorder mit 2 x 2 Watt Musikleistung.
  • Net weight (2.2 lb = 1 kg)
  • 1.8 kg / 3 lb 15.4 oz (3.965 lb)
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
