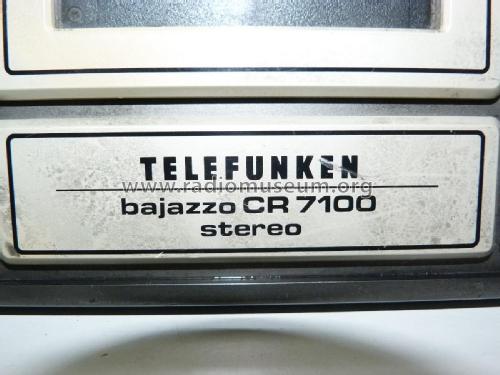

Bajazzo CR 7100 Stereo

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1980/1981

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139048

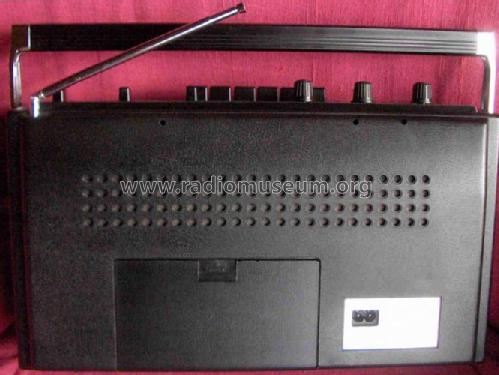

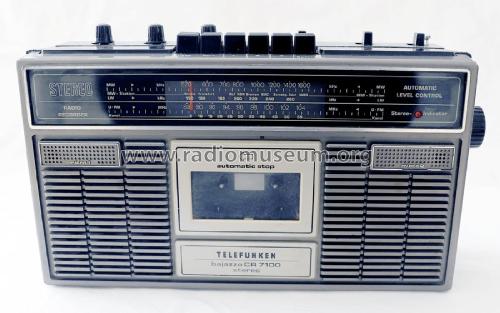

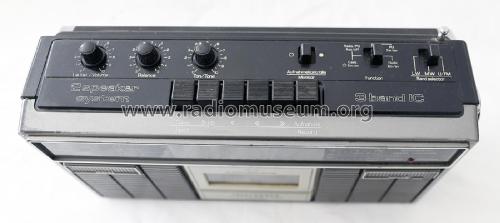

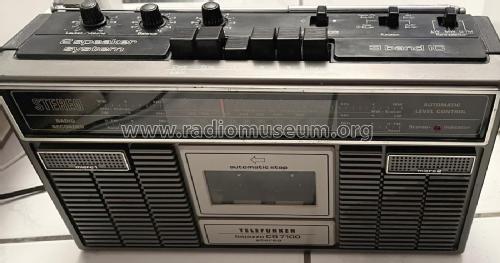

• Picture

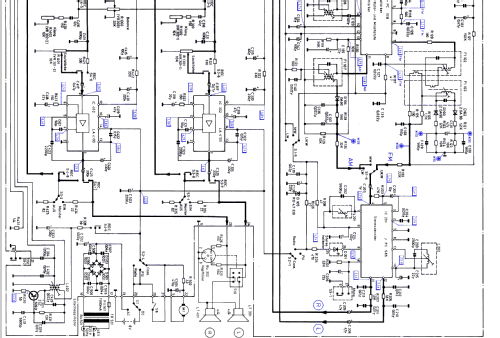

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220; D: 4 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Bajazzo CR 7100 Stereo - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 352 x 188 x 106 mm / 13.9 x 7.4 x 4.2 inch

• Notes
• Telefunken bajazzo CR 7100 Stereo;
  IC bestückt, 2 x 2 Watt, FM AFC, 2 Mikrofone, DIN Buchse, Kunststoff mattschwarz/braun-metallic.

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Mentioned in
• -- Original prospect or advert (Telefunken Report D 1980/81)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
