Bajazzo de luxe 201 Teakholz furniert

Bajazzo de luxe 201; Telefunken (ID = 2358301) Radio Bajazzo de luxe 201; Telefunken (ID = 2358302) Radio
Bajazzo de luxe 201; Telefunken (ID = 2358303) Radio Bajazzo de luxe 201; Telefunken (ID = 2358304) Radio
Bajazzo de luxe 201; Telefunken (ID = 2358305) Radio Bajazzo de luxe 201; Telefunken (ID = 2358307) Radio

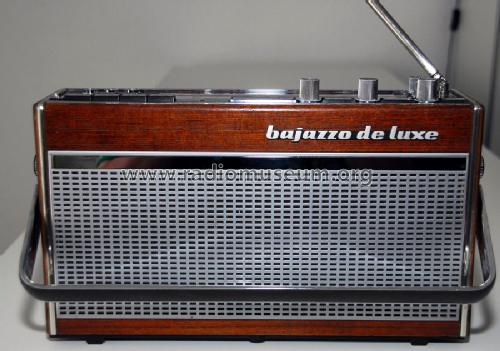

Bajazzo de luxe 201; Telefunken (ID = 1454992) Radio Bajazzo de luxe 201; Telefunken (ID = 1454990) Radio

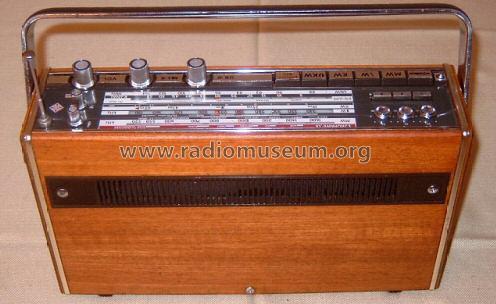

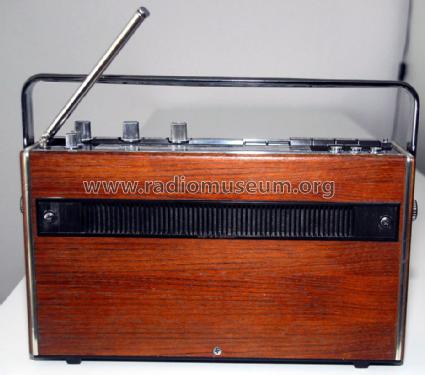

Bajazzo de luxe 201; Telefunken (ID = 182848) Radio Bajazzo de luxe 201; Telefunken (ID = 1454993) Radio
Use red slider bar for more.
Bajazzo de luxe 201; Telefunken (ID = 2358301) Radio
Telefunken: Bajazzo de luxe 201 [Radio] ID = 2358301 1400x1170
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bajazzo de luxe 201 Teakholz furniert, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12: AF106 AF121 AF136 AF137 AF136 AF121 AF137 BC130 AC122 AC116 AD155 AD155
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Radio Control (+Remote Wire etc)
Power type and voltage Batteries / addl. power jack / 5 × D 1,5 / 7,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Bajazzo de luxe 201 [Teakholz furniert] - Telefunken Deutschland TFK,
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 190 x 90 mm / 12.6 x 7.5 x 3.5 inch
Notes

Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie; Ausgangsleistung bei Autobetrieb: 5 W. Netzbetrieb mit zusätzlichem Netzteil möglich.

Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
