Bajazzo TS3511

Bajazzo TS3511; Telefunken (ID = 103180) Radio

Bajazzo TS3511; Telefunken (ID = 103181) Radio

Bajazzo TS3511; Telefunken (ID = 103182) Radio

Bajazzo TS3511; Telefunken (ID = 103184) Radio

Bajazzo TS3511; Telefunken (ID = 103185) Radio

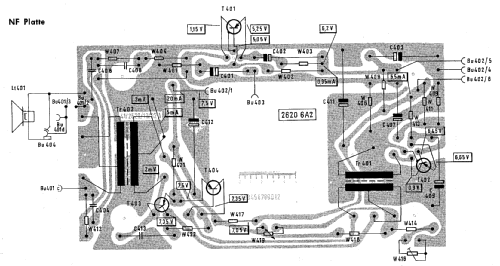

Bajazzo TS3511; Telefunken (ID = 103186) Radio

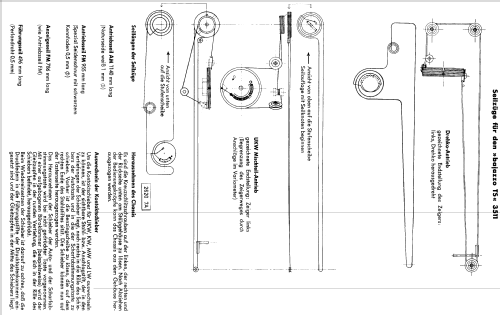

Bajazzo TS3511; Telefunken (ID = 103187) Radio

Bajazzo TS3511; Telefunken (ID = 103188) Radio

Bajazzo TS3511; Telefunken (ID = 103189) Radio

Bajazzo TS3511; Telefunken (ID = 1797505) Radio
Bajazzo TS3511; Telefunken (ID = 14046) Radio Bajazzo TS3511; Telefunken (ID = 656008) Radio
Bajazzo TS3511; Telefunken (ID = 656007) Radio Bajazzo TS3511; Telefunken (ID = 656004) Radio
Bajazzo TS3511; Telefunken (ID = 656005) Radio Bajazzo TS3511; Telefunken (ID = 656006) Radio

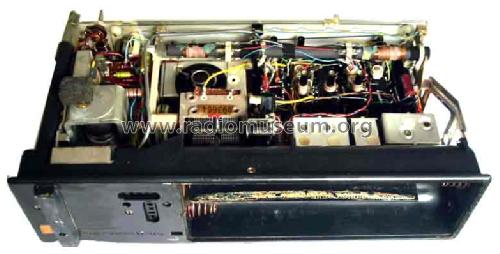

Bajazzo TS3511; Telefunken (ID = 656009) Radio Bajazzo TS3511; Telefunken (ID = 656010) Radio
Bajazzo TS3511; Telefunken (ID = 766282) Radio Bajazzo TS3511; Telefunken (ID = 799022) Radio
Use red slider bar for more.
Bajazzo TS3511; Telefunken (ID = 14046) Radio

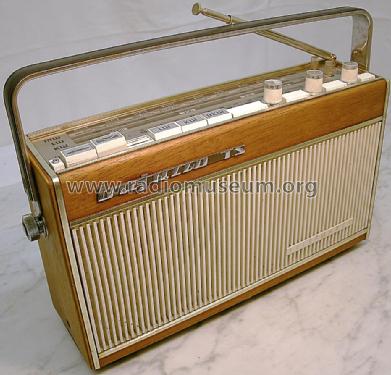

Telefunken: Bajazzo TS3511 [Radio] ID = 14046 869x574
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bajazzo TS3511, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

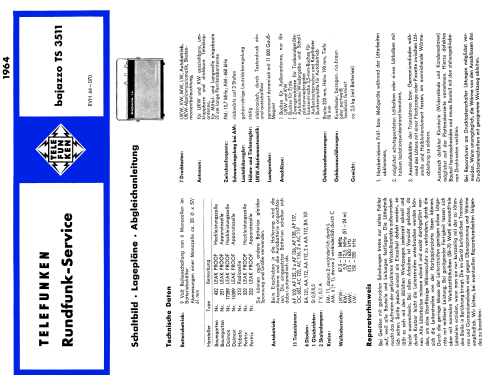

Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner

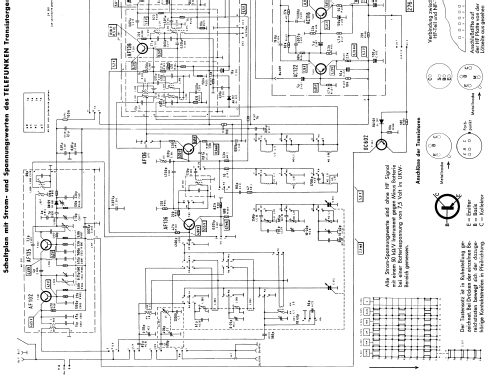

Semiconductors (the count is only for transistors) 11: AF102 AF135 AF136 AF136 AF138 AF137 OC602 AC122 AC116 AC117 AC117 BA121 AA112 BA101
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)

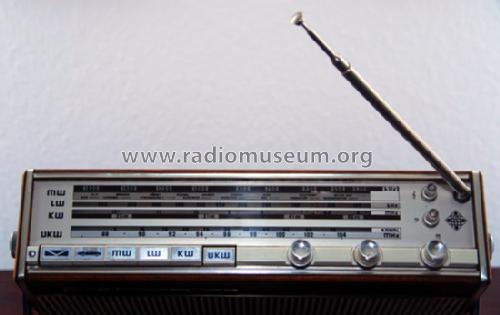

Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details

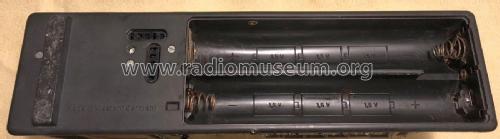

Power type and voltage Dry Batteries / 6 × 1,5 Volt

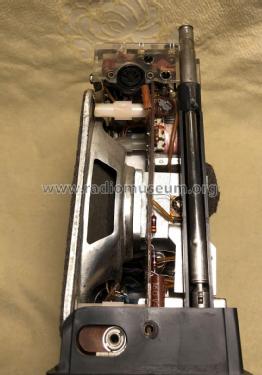

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.3 W (unknown quality)
from Radiomuseum.org Model: Bajazzo TS3511 - Telefunken Deutschland TFK,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 190 x 90 mm / 12.6 x 7.5 x 3.5 inch
Notes Dioden: 4× AA112

UKW: 87,5 - 104 MHz
MW: 515 - 1630 kHz
LW: 150 - 350 kHz
KW: 5900 - 12500 kHz

Baugleich mit AEG Bajazzo TS3511.
Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)
Price in first year of sale 499.00 DM
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
