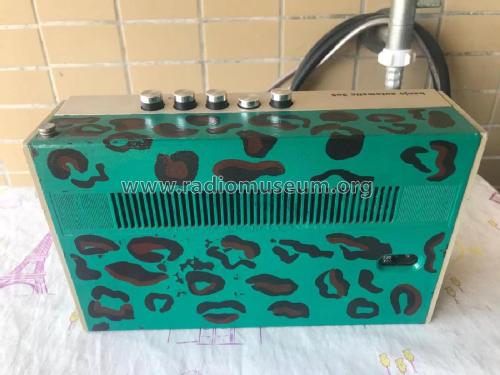

Banjo Automatic 305

Banjo Automatic 305; Telefunken (ID = 302683) Radio Banjo Automatic 305; Telefunken (ID = 101600) Radio
Banjo Automatic 305; Telefunken (ID = 587514) Radio Banjo Automatic 305; Telefunken (ID = 101598) Radio
Banjo Automatic 305; Telefunken (ID = 101601) Radio Banjo Automatic 305; Telefunken (ID = 101602) Radio
Banjo Automatic 305; Telefunken (ID = 587512) Radio Banjo Automatic 305; Telefunken (ID = 602868) Radio
Banjo Automatic 305; Telefunken (ID = 602869) Radio Banjo Automatic 305; Telefunken (ID = 1607245) Radio
Use red slider bar for more.
Banjo Automatic 305; Telefunken (ID = 302683) Radio
Telefunken: Banjo Automatic 305 [Radio] ID = 302683 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Banjo Automatic 305, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1970 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 127-220/6x1,5 Volt

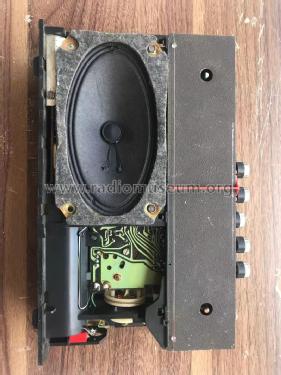

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Banjo Automatic 305 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 150 x 70 mm / 9.8 x 5.9 x 2.8 inch
Notes Endstufen-IC TAA 300
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Wolfgang Preuss. See "Data change" for further contributors.
