Camping II M.F.

Telefunken Italia, Milano

  • Year
  • 1965 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 175999

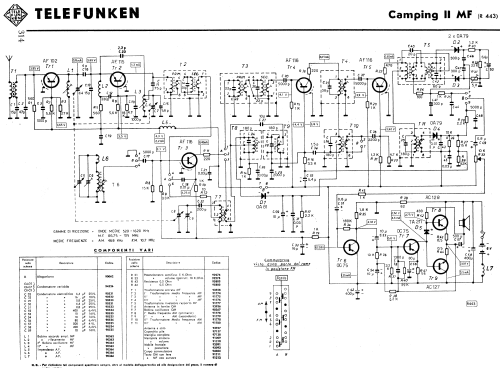

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Camping II M.F. - Telefunken Italia, Milano
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 262 x 136 x 68 mm / 10.3 x 5.4 x 2.7 inch
  • Net weight (2.2 lb = 1 kg)
  • 1.2 kg / 2 lb 10.3 oz (2.643 lb)
  • Price in first year of sale
  • 29,900.00 ITL
  • Mentioned in
  • Catalogo ANIE 1965-66
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
