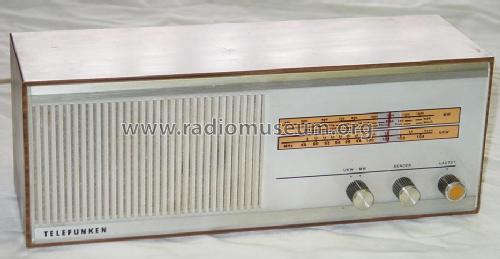

Capriccino 101 RVH 70-4310; Telefunken (ID = 113126) Radio
Telefunken: Capriccino 101 RVH 70-4310 [Radio] ID = 113126 933x485
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capriccino 101 RVH 70-4310, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1970/1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: BF222 BF222 BF153 BF153 BF153 BC225 BF115 AC184 AC185
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.1 W (unknown quality)
from Radiomuseum.org Model: Capriccino 101 RVH 70-4310 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 340 x 130 x 110 mm / 13.4 x 5.1 x 4.3 inch
Notes Gehäuse in rot oder Nussbaumdekor hell matt.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Collectors' prices
External source of data Erb
Source of data Handbuch VDRG 1970/1971
