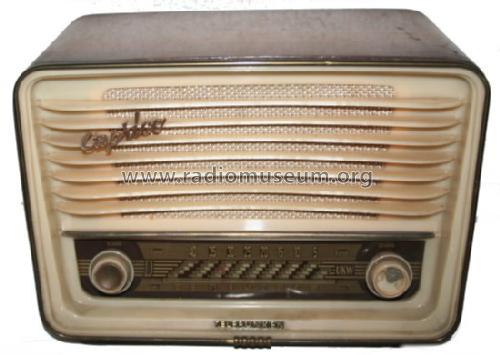

Caprice ; Telefunken (ID = 48205) Radio
Telefunken: Caprice [Radio] ID = 48205 933x691
Select picture or schematic to display from thumbnails on the right and click for download.
For model Caprice, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner

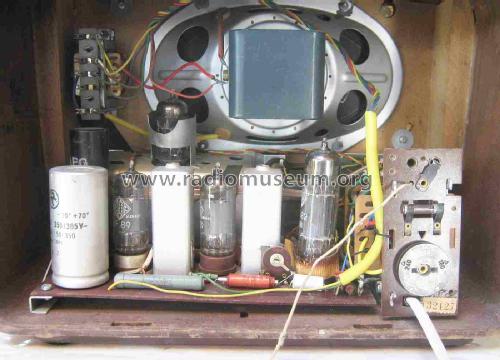

Valves / Tubes 4: ECC85 EF89 EF89 ECL82
Semiconductors (the count is only for transistors) B250C75z OA172 OA172
Main principle Super-Heterodyne (Super in general); ZF/IF 10700 kHz
Tuned circuits 10 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Caprice - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 285 x 195 x 180 mm / 11.2 x 7.7 x 7.1 inch
Notes
  • UKW-Rundfunkempfänger
  • Frequenzbereich 87,5-100 MHz
Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)
Price in first year of sale 169.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3401 models, 2964 with images and 1956 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Telefunken: Caprice
Threads: 1 | Posts: 1
Hits: 2346     Replies: 0
telefunken: Serviceanleitung ; Caprice
Dirk Becker
16.Mar.04
  1 Anbei die original Serviceanleitung des Telefunken Caprice.

Gruß

Dirk Becker
