caprice-clock 101; Telefunken (ID = 1194241) Radio
Telefunken: caprice-clock 101 [Radio] ID = 1194241 933x446

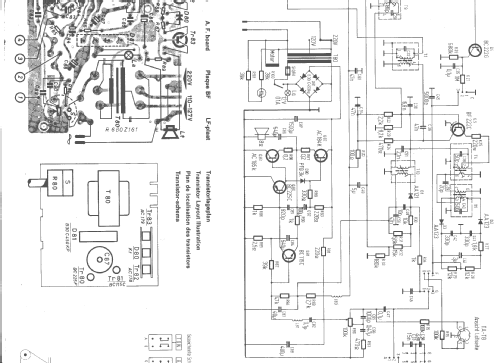

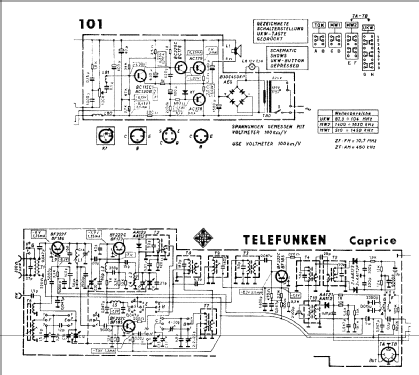

Select picture or schematic to display from thumbnails on the right and click for download.
For model caprice-clock 101, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Sammlung Albert Weiss

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: BF222 BF222 BF222 BF222 BC115 BC225 AC178 AC179 KI AA112
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
Power out 1.1 W (unknown quality)
from Radiomuseum.org Model: caprice-clock 101 - Telefunken Deutschland TFK,
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 370 x 140 x 120 mm / 14.6 x 5.5 x 4.7 inch
Notes Eingebaute Synchron-Schaltuhr mit Einschlafabschalt- und Weckmechanik.

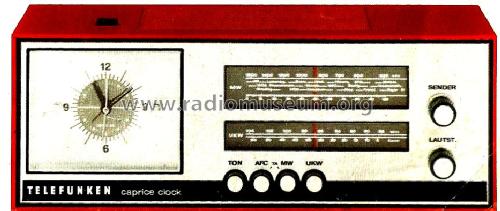

Gehäuse weiss, rot oder grün.
Net weight (2.2 lb = 1 kg) 2.160 kg / 4 lb 12.1 oz (4.758 lb)
External source of data erb
Source of data Handbuch VDRG 1969/1970
