Capricho U-2315; Telefunken (ID = 599641) Radio
Telefunken: Capricho U-2315 [Radio] ID = 599641 896x672
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capricho U-2315, Telefunken Radiotécnica Ibérica; Getafe:
fotos Abel C.T. cedidas amablemente.

Country:  Spain
Manufacturer / Brand:  Telefunken Radiotécnica Ibérica; Getafe
Year: 1964 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UF89 UABC80 UL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110-127 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Capricho U-2315 - Telefunken Radiotécnica
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 298 x 166 x 142 mm / 11.7 x 6.5 x 5.6 inch
Price in first year of sale 2'375.00 ESP

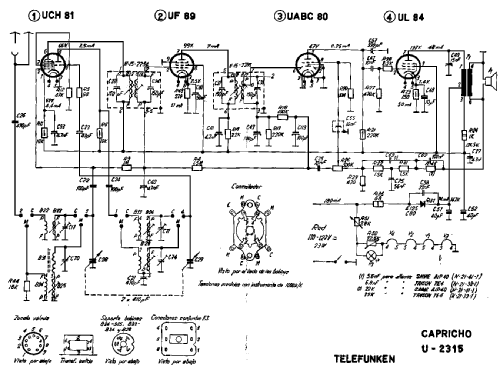

Literature/Schematics (1) -- Schematic
Literature/Schematics (4) Anuncio La Vanguardia Española diciembre 1963

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
