• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1982

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 199348

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage and/or dry batteries / 3 x 1,5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

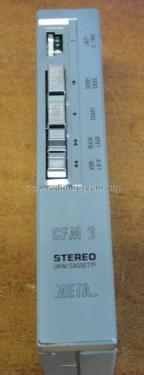

• Model: CFM-3 - Telefunken Deutschland TFK,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 160 x 30 x 90 mm / 6.3 x 1.2 x 3.5 inch

• Notes

• Pocket-Radio-Cassettenspieler mit drei FM-Stationstasten. Gehäuse Silber.

• Net weight (2.2 lb = 1 kg)
• 0.450 kg / 0 lb 15.9 oz (0.991 lb)

• Source of data
• -- Schematic

• Mentioned in
• -- Original prospect or advert (Telefunken Programm 1982/83)

• Author
• Model page created by Holger Ortmann. See "Data change" for further contributors.
