Contessa Stereo 101

Contessa Stereo 101; Telefunken (ID = 465744) Radio

Contessa Stereo 101; Telefunken (ID = 465745) Radio

Contessa Stereo 101; Telefunken (ID = 465746) Radio

Contessa Stereo 101; Telefunken (ID = 465747) Radio

Contessa Stereo 101; Telefunken (ID = 703852) Radio

Contessa Stereo 101; Telefunken (ID = 2085034) Radio
Contessa Stereo 101; Telefunken (ID = 751639) Radio Contessa Stereo 101; Telefunken (ID = 1111435) Radio

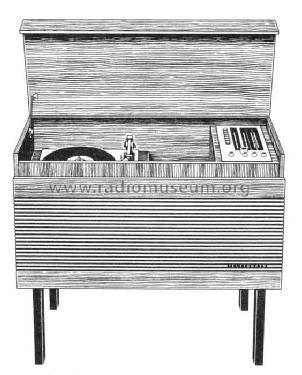

Contessa Stereo 101; Telefunken (ID = 297024) Radio Contessa Stereo 101; Telefunken (ID = 1111434) Radio
Contessa Stereo 101; Telefunken (ID = 1111436) Radio
Use red slider bar for more.

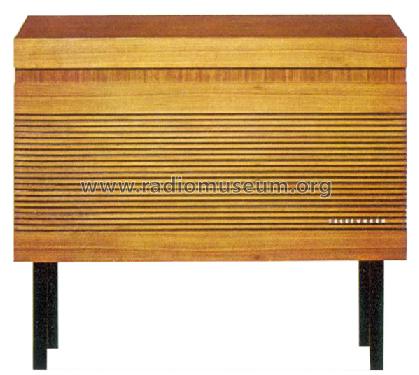

Contessa Stereo 101; Telefunken (ID = 751639) Radio
Telefunken: Contessa Stereo 101 [Radio] ID = 751639 600x536
Select picture or schematic to display from thumbnails on the right and click for download.
For model Contessa Stereo 101, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Q: Telefunken Service

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Contessa Stereo 101 - Telefunken Deutschland TFK,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 830 x 740 x 380 mm / 32.7 x 29.1 x 15 inch
Notes Rundfunk-Chassis = Andante Stereo 101; Stereo-Decoder nachrüstbar; Stereo-NF-Verstärker mit 2 Endstufen je 4 W;
Phono-Chassis = TW509 mit Kristallsystem T32/2.
Net weight (2.2 lb = 1 kg) 32 kg / 70 lb 7.8 oz (70.485 lb)
External source of data erb
Source of data Handbuch VDRG 1968/1969
Literature/Schematics (1) -- Original-techn. papers.
