Cruz del Sur FE-128 /23
Telefunken Radiotécnica Ibérica; Getafe
- Country
- Spain
- Manufacturer / Brand
- Telefunken Radiotécnica Ibérica; Getafe
- Year
- 1968
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 326872

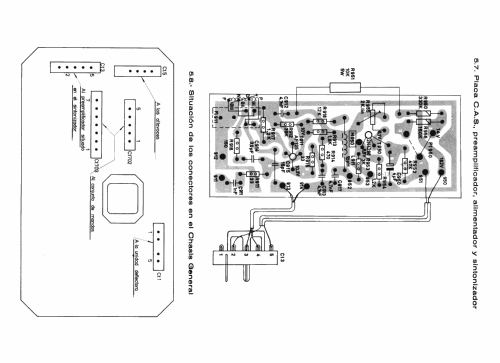

Imagen del manual

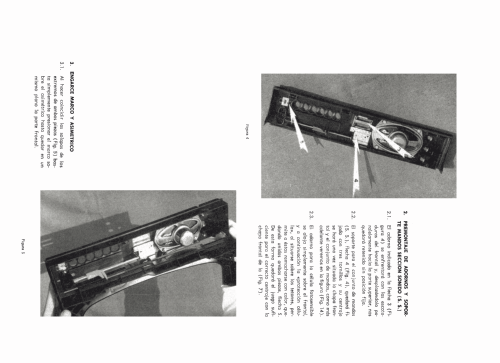

Imagen del manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Number of Transistors
- 13
- Semiconductors
- AF139 AF139 AF106 AF125 2N4286 AF121 BC207 AC122 BC147 2N4291 AF121 AF121 AF121 AAY41 AA119 BA173 OA90 OA91 OA95 E25C25 E125C500 E250C500 V60C2
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 127; 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Cruz del Sur FE-128 /23 - Telefunken Radiotécnica
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Telefunken Radiotécnica Ibérica, S.A., Festival FE-128 /23
TV B/N 23" con sintonizador toda banda transistorizado para VHF/UHF
- Seis presintonías por botonera
- Altavoz elíptico de 6" X 10"
- Altavoz elíptico de 3" x 5"
- Altavoz Ø 4"
Véase mismo modelo en 19" Festival FE-128 /19
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
