CS 10 hifi

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Data
Forum
Pictures
Collections

  • Year
  • 1983 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 261237

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Record Player (not changer); Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110/220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: CS 10 hifi - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 460 x 140 x 350 mm / 18.1 x 5.5 x 13.8 inch
  • Notes


  • Telefunken 2-Speed (33,33 & 45 rpm) Stereo Turntable Model CS 10 hifi.
    Platter 310mm, 1,5 kg, die cast aluminum
    Stereo Magnetic Cartridge: Audio Technika AT 72K  E.Number: 338 453 355
    Stylus: Audi Technika ATN 72 E.Number: 338 453 356
    Dust Cover
    Power Consumption approx. 5.5VA at 220V/50Hz

    Available
    in Metallic-Brown E-Number: 334 454 798 and
    in Champagner-Metallic E-Number 334 454 800




  • Net weight (2.2 lb = 1 kg)
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Mentioned in

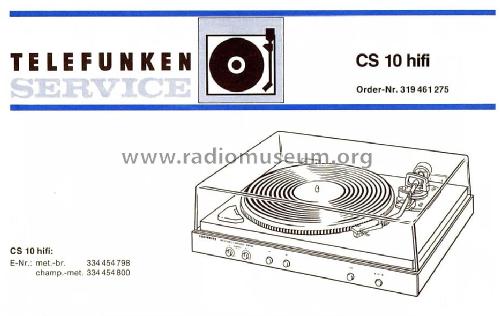

  • - - Manufacturers Literature (Service Manual Order-Nr. 319 461 275)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
