• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1980 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 92150

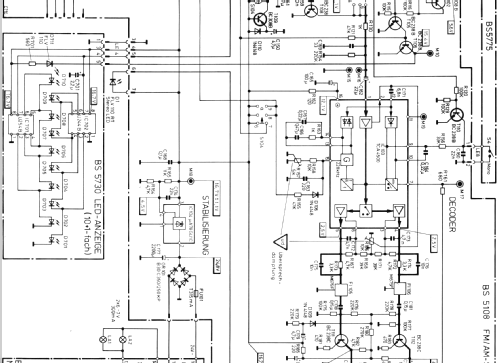

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• 2SK55 BF241 BF256 BF441 BC308 BC238 TDA1046 CA3089 TCA4500 U244B U254B µA78G SMV709 1N4148 B30C350

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

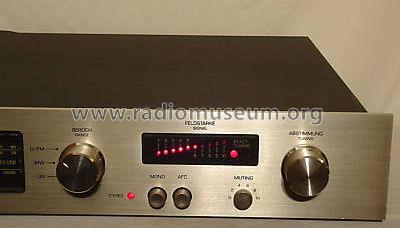

• Model: FM HiFi Stereo/FM-AM Tuner CT10 - Telefunken Deutschland TFK,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 460 x 80 x 350 mm / 18.1 x 3.1 x 13.8 inch

• Notes

• Wellenbereiche:
  UKW = 87,6 - 108 MHz
  MW = 518 - 1610 kHz
  LW = 148 - 325 kHz

  Abstimmhilfen:
  Feldstärkeabhängiges Abstimmanzeigeinstrument AM/FM mit LED's.
  Stereo-Indikatoranzeige.
  Exact-Tuning-Anzeige.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• -- Schematic (Original Telefunken Service Booklet)

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.

• Other Models

• Here you find 3615 models, 3205 with images and 2154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
