Diadal 123V

Diadal 123V; Telefunken; Budapest (ID = 585859) Radio Diadal 123V; Telefunken; Budapest (ID = 887802) Radio
Diadal 123V; Telefunken; Budapest (ID = 887800) Radio Diadal 123V; Telefunken; Budapest (ID = 887799) Radio
Diadal 123V; Telefunken; Budapest (ID = 1881889) Radio Diadal 123V; Telefunken; Budapest (ID = 1881890) Radio
Diadal 123V; Telefunken; Budapest (ID = 1881891) Radio Diadal 123V; Telefunken; Budapest (ID = 1881892) Radio
Diadal 123V; Telefunken; Budapest (ID = 1881893) Radio Diadal 123V; Telefunken; Budapest (ID = 1881894) Radio
Use red slider bar for more.

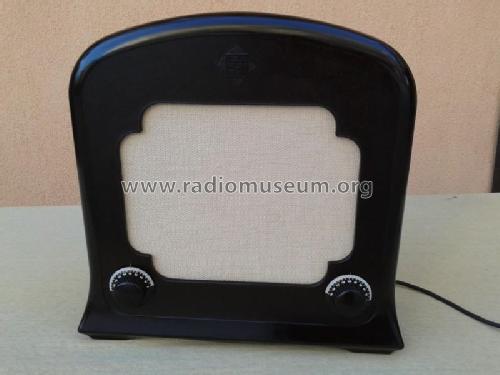

Diadal 123V; Telefunken; Budapest (ID = 585859) Radio
Telefunken; Budapest: Diadal 123V [Radio] ID = 585859 728x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Diadal 123V, Telefunken; Budapest:
Thanks for Mr.Kósa Endre Hungary! More info: ..szepradiok.hu/lampas.html

Country:  Hungary
Manufacturer / Brand:  Telefunken; Budapest
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: REN904 RES174 RGN354 unknown_Tube
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: Diadal 123V - Telefunken; Budapest
Material Bakelite case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Price in first year of sale 135.00 pengo
Source of data -- Collector info (Sammler)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Telefunken; Budapest
Here you find 91 models, 87 with images and 63 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
