• Year
  • 1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 116693

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 14
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digitale 50 - Telefunken Deutschland TFK,
  • Shape

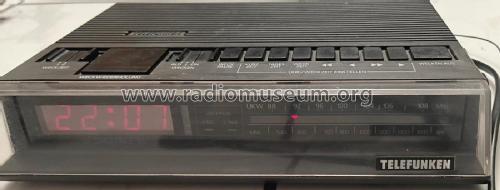

  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 250 x 55 x 155 mm / 9.8 x 2.2 x 6.1 inch
  • Notes
  • ICs: TDA1220, TBA820, HCF4013, TMS3459.
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Bernd Pötzsch. See "Data change" for further contributors.
