• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1988 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 162629

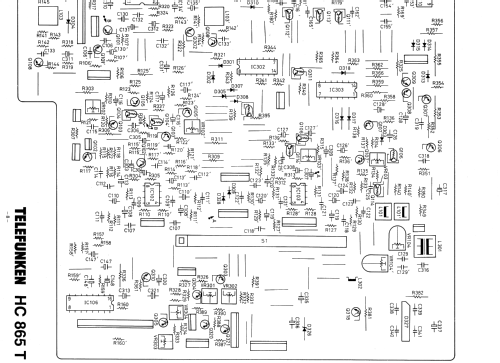

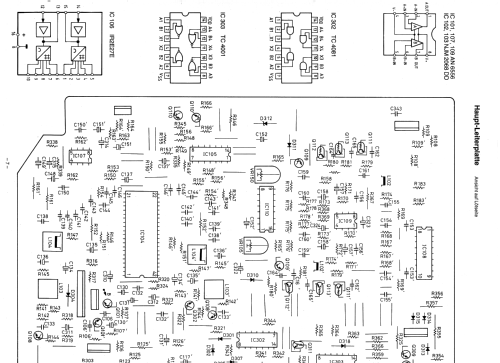

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

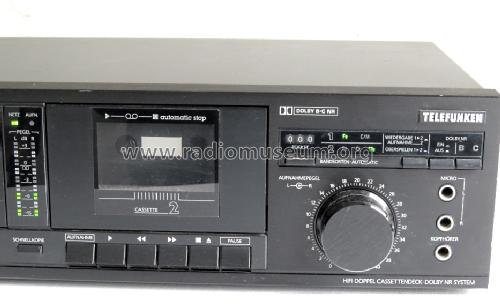

• Model: Double Cassette Deck HC865T - Telefunken Deutschland TFK,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 118 x 245 mm / 17.3 x 4.6 x 9.6 inch

• Notes
• Gleichlaufschwankung 0,14%, Geräuschspannungsabstand 74dB, Übertragungsbereich 25-16000HZ, Klirrfaktor 1,5%, Höhenaussteuerbarkeit -10dB, Übersprechdämpfung 40dB, Löschdämpfung 70dB.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Daniel Doll. See "Data change" for further contributors.
