ELA N620

ELA N620; Telefunken (ID = 2085935) Power-S
ELA N620; Telefunken (ID = 2048259) Power-S ELA N620; Telefunken (ID = 2048260) Power-S

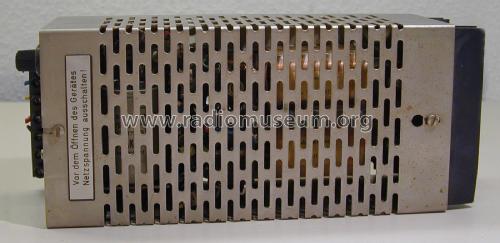

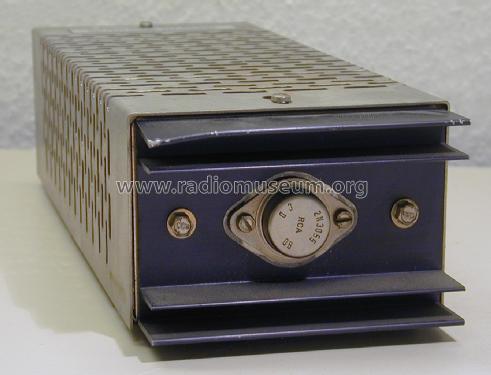

ELA N620; Telefunken (ID = 2048261) Power-S ELA N620; Telefunken (ID = 2048263) Power-S
Use red slider bar for more.

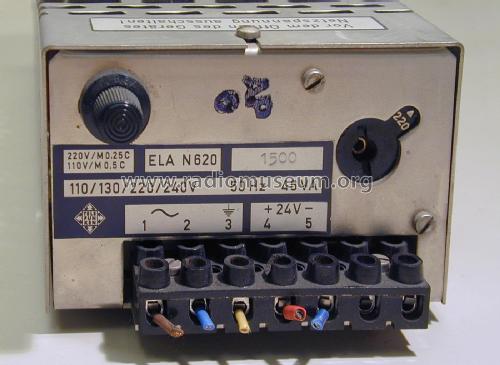

ELA N620; Telefunken (ID = 2048259) Power-S
Telefunken: ELA N620 [Power-S] ID = 2048259 1400x1023
Select picture or schematic to display from thumbnails on the right and click for download.
For model ELA N620, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1971 ?? Category: Power supply/conditioner or battery or charger
Semiconductors (the count is only for transistors) Semiconductors present. 2N3055
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 50Hz, 110; 130; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: ELA N620 - Telefunken Deutschland TFK,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 100 x 60 x 230 mm / 3.9 x 2.4 x 9.1 inch
Notes

Telefunken ELA N620 ist ein Stromversorgungsgerät mit 24V Ausgangsspannung bei max. 1A Ausgangsstrom.

Anwendung in der Ela- und Tonstudio-Technik, z.B. für Mischpulte in Kassettentechnik.

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Mentioned in - - Manufacturers Literature

Model page created by Eckhard Wegner. See "Data change" for further contributors.
