Ela V 1010; Telefunken (ID = 450556) Ampl/Mixer

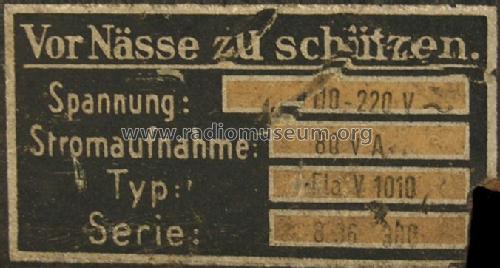

Telefunken: Ela V 1010 [Ampl/Mixer] ID = 450556 850x570
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ela V 1010, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Mit freundlicher Genehmigung von Herrn Heinz Posingis vom 11.12.2007 hochgeladen

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1936/1937 Category: Audio Amplifier or -mixer
Valves / Tubes 4: REN904 RES964 RES964 RGN2004
Main principle Audio-Amplification; 2 AF stage(s)
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 7.5 W (unknown quality)
from Radiomuseum.org Model: Ela V 1010 - Telefunken Deutschland TFK,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 425 x 200 x 245 mm / 16.7 x 7.9 x 9.6 inch
Notes Ausgangs-Anschluß-Impedanzen: 15 und 140 Ohm.
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 355.00 RM
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
