EV1297

EV1297; Telefunken (ID = 841695) Radio EV1297; Telefunken (ID = 162034) Radio
EV1297; Telefunken (ID = 162035) Radio EV1297; Telefunken (ID = 1275971) Radio
Use red slider bar for more.

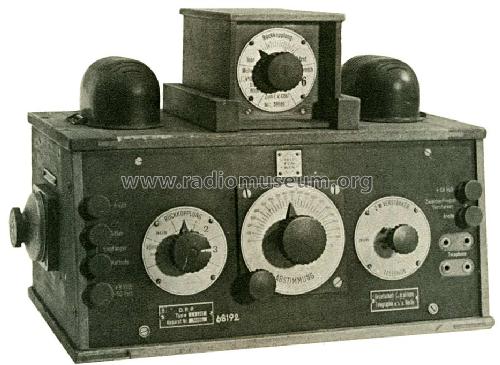

EV1297; Telefunken (ID = 841695) Radio
Telefunken: EV1297 [Radio] ID = 841695 933x682
Select picture or schematic to display from thumbnails on the right and click for download.
For model EV1297, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Quelle: Katalog DRM, Berlin.

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1922/1923 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RE38 RE38 RE38 RE38
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 8 & 50 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: EV1297 - Telefunken Deutschland TFK,
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 390 x 265 x 200 mm / 15.4 x 10.4 x 7.9 inch
Notes 8 ausw.Spulenkästen
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Source of data Radiokatalog Band 1, Ernst Erb
Picture reference Eine Abbildung findet sich im Doppelband "Radio von gestern"
