For model F101, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Vue de face

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1966 ?? Category: Broadcast Receiver - or past WW2 Tuner

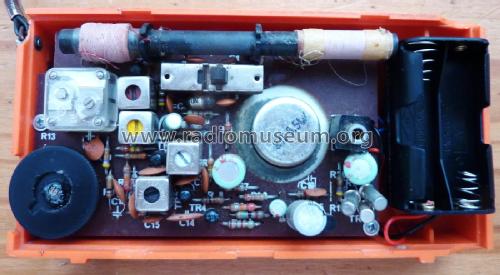

Semiconductors (the count is only for transistors) 8: SFT319 SFT319 SFT320 SFT353 SFT353 AC184 AC185 unknown_tr
Main principle Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / AA: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: F101 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 160 x 80 x 35 mm / 6.3 x 3.1 x 1.4 inch
Notes

Une étiquette intérieure indique: Importé et garanti par la S.A. belge AEG-TELEFUNKEN, rue Souveraine 40, 1050 Bruxelles.
Pays d'origine actuellement inconnue.


Een etiket binnenin vermeldt: Ingevoerd en gewaarborgd door de Belgische N.V. AEG-TELEFUNKEN, Opperstraat 40, 1050 Brussel.
Land van herkomst op dit moment onbekend.

The late production has some silicium transistors and the IF is about 465 kHz.

Transistors list is BF233 BF233 BF233 BC208 BC205 AC184 AC185 unknown_tr

Net weight (2.2 lb = 1 kg) 0.390 kg / 0 lb 13.7 oz (0.859 lb)

Model page created by Michel Biederbeck. See "Data change" for further contributors.
