F103

F103; Telefunken (ID = 2153344) Radio F103; Telefunken (ID = 2153345) Radio
F103; Telefunken (ID = 2153346) Radio F103; Telefunken (ID = 2153350) Radio
Use red slider bar for more.
F103; Telefunken (ID = 2153344) Radio

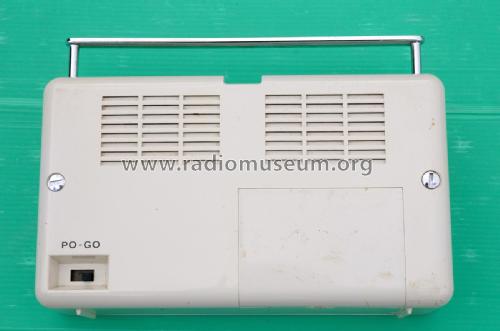

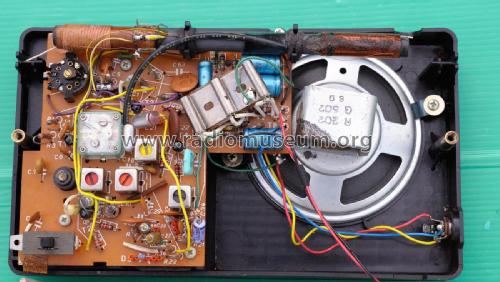

Telefunken: F103 [Radio] ID = 2153344 1300x865
Select picture or schematic to display from thumbnails on the right and click for download.
For model F103, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: BF233 BF233 BF234 BF234 BC115 BC225 AC184 AC185 AA121 PTO/1 BZX46
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 8.5 cm = 3.3 inch
Power out 0.4 W (undistorted)
from Radiomuseum.org Model: F103 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 215 x 130 x 58 mm / 8.5 x 5.1 x 2.3 inch
Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Literature/Schematics (1) -- Original prospect or advert

Model page created by Jean-Louis Buton. See "Data change" for further contributors.
