- Country
- Spain
- Manufacturer / Brand
- Telefunken Radiotécnica Ibérica; Getafe
- Year
- 1970 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 324198

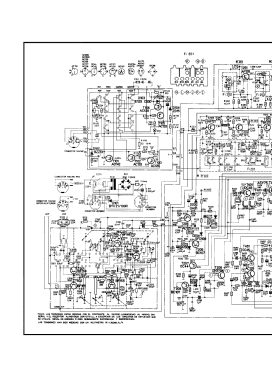

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Number of Transistors
- 43
- Semiconductors
- BF155 BF166 AF121 BF115 AF118 AC181 AC180 AC125 AC126 AC127 AC128 OC44 OC45 AF126 BC107 2N3794 ASY75 AU110 AD142 2N3731 AA119 B50C2500 BA100 BY118 BYX10 BYX21 BZZ13 E125C500 OA81 OA90 SFD108 ZD15
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 127; 220/ 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: FE1008 - Telefunken Radiotécnica
- Notes
-
Tubo rectangular 28 cm. (11")
M.A.T.: 10,5 kV
VHF Canales 2 a 13
UHF Canales 14 a 69Semiconductores listados uno por tipo
- Literature/Schematics (1)
- -- Original prospect or advert
- Literature/Schematics (2)
- -- Schematic
- Author
- Model page created by Mariano Crucera Ramos. See "Data change" for further contributors.
