FE12/53TF

FE12/53TF; Telefunken (ID = 659090) Television

FE12/53TF; Telefunken (ID = 659092) Television

FE12/53TF; Telefunken (ID = 659093) Television

FE12/53TF; Telefunken (ID = 659094) Television

FE12/53TF; Telefunken (ID = 659096) Television

FE12/53TF; Telefunken (ID = 659097) Television

FE12/53TF; Telefunken (ID = 659098) Television

FE12/53TF; Telefunken (ID = 659099) Television
Use red slider bar for more.
FE12/53TF; Telefunken (ID = 659090) Television

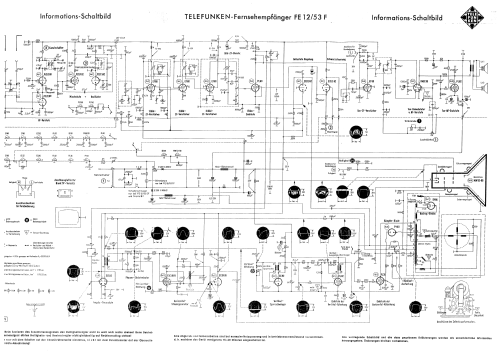

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1957/1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: MW53-80
Main principle Superhet with RF-stage; ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: FE12/53TF - Telefunken Deutschland TFK,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 630 x 605 x 455 mm / 24.8 x 23.8 x 17.9 inch
Notes

Wie FE12/53Tjedoch mit PCC88.

Net weight (2.2 lb = 1 kg) 38 kg / 83 lb 11.2 oz (83.7 lb)
Price in first year of sale 1'098.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1957/58

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
