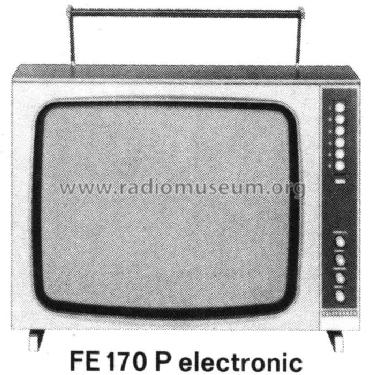

FE170P electronic Ch= 209; Telefunken (ID = 2233819) Television FE170P electronic Ch= 209; Telefunken (ID = 448117) Television
FE170P electronic Ch= 209; Telefunken (ID = 789068) Television FE170P electronic Ch= 209; Telefunken (ID = 789069) Television
FE170P electronic Ch= 209; Telefunken (ID = 1006707) Television FE170P electronic Ch= 209; Telefunken (ID = 1006708) Television
FE170P electronic Ch= 209; Telefunken (ID = 2086333) Television
Use red slider bar for more.

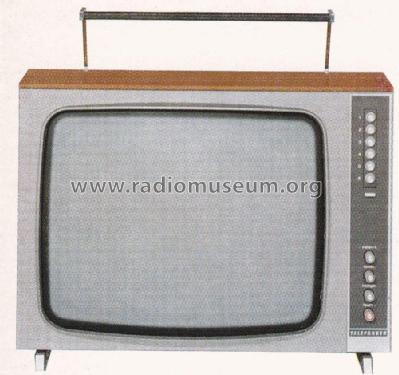

FE170P electronic Ch= 209; Telefunken (ID = 2233819) Television
Telefunken: FE170P electronic Ch= 209 [Television] ID = 2233819 900x845
Select picture or schematic to display from thumbnails on the right and click for download.
For model FE170P electronic Ch= 209, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
TFK Sprecher 50/69

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1969/1970 Category: Television Receiver (TV) or Monitor
Valves / Tubes 4: ECH84 ECL805 EL504 A44-12W
Semiconductors (the count is only for transistors) 16:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FE170P electronic Ch= 209 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 370 x 330 mm / 19.7 x 14.6 x 13 inch
Notes Empfangsbereich VHF/UHF
2 Ausführungen: Holz hell-matt und weiß.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
