For model FE22T (FE22/59T) 59 cm, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Bedienungsanleitung

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1960–1962 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: AW59-90
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: FE22T [59 cm] - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 610 x 520 x 410 mm / 24 x 20.5 x 16.1 inch
Notes VHF/UHF
In den Katalogen wird das Gerät als FE22T geführt, in der Bedienungsanleitung als FE22/59T (für UHF vorbereitet) und als FE22/59T-UHF (UHF-Tuner ab Werk eingebaut).
Zubehör:
Anschraubbare Beine 18,-DM
Fernregler FR5 16,-DM
UHF-Tuner 98,-DM
Net weight (2.2 lb = 1 kg) 31 kg / 68 lb 4.5 oz (68.282 lb)
Price in first year of sale 1'082.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1961/62
Mentioned in Handbuch RFP 1961/62

Model page created by Bernd P. Kieck. See "Data change" for further contributors.



All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3462 models, 3032 with images and 2007 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Telefunken: FE22T
Threads: 1 | Posts: 1
Hits: 1452     Replies: 0
telefunken: FE22T (FE 22 T) (FE22/59T);
Otmar Jung
27.Oct.09
  1

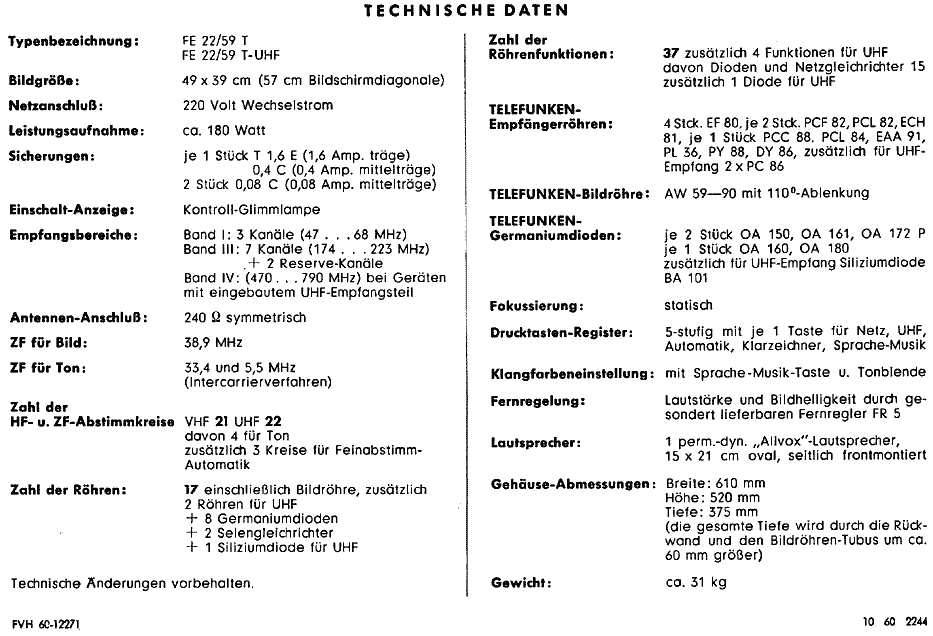

Technische Daten aus der Bedienungsanleitung von 1960.
