- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1962/1963
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 107653
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- AW59-90
- Number of Transistors
- 5
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

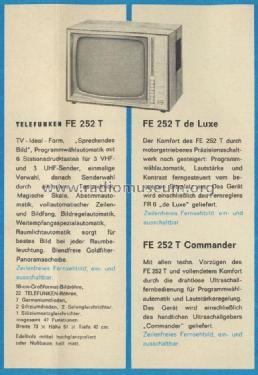

- Model: FE252T Commander - Telefunken Deutschland TFK,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 730 x 510 x 420 mm / 28.7 x 20.1 x 16.5 inch
- Notes
-
VHF/UHF. Technische Daten wie FE252T de Luxe, jedoch mit Ultraschall-Fernbedienung.
Die Ultraschall-Fernbedienung "FE 252 T (St) Commander" arbeitet rein mechanisch. Der Ultraschall-Empfänger ist mit 5 Transistoren (3 x AF117, 2 x OC76) bestückt.
- Net weight (2.2 lb = 1 kg)
- 34 kg / 74 lb 14.2 oz (74.89 lb)
- Price in first year of sale
- 1,625.00 DM
- Source of data
- Handbuch VDRG 1962/1963
- Mentioned in
- Funk-Technik (FT) (24/1962, S. 816 / Die Ultraschall-Fernbedienung des "FE252T (St) Commander")
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
