• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1931/1932

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 225074

• Number of Tubes
• 1

• Valves / Tubes
• RGN1054

• Wave bands
• - without

• Details
• Power Supply (not only Batt.El.)

• Power type and voltage
• Alternating Current supply (AC) / 210 - 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

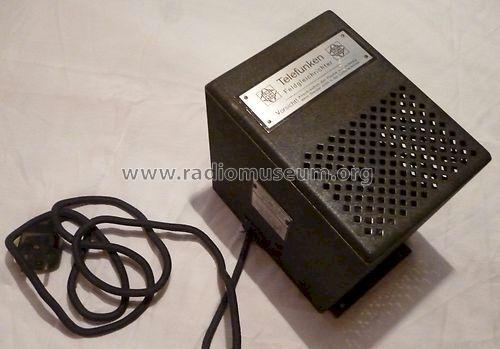

• Model: Feldgleichrichter FGL 601 - Telefunken Deutschland TFK,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 170 x 175 x 195 mm / 6.7 x 6.9 x 7.7 inch

• Notes

• Feldgleichrichter für fremderregte Lautsprecher,
  z.B. Arcodyn 600.
  Leistungsaufnahme: 55 VA / 40 Watt.

• Net weight (2.2 lb = 1 kg)
• 3.350 kg / 7 lb 6.1 oz (7.379 lb)

• Price in first year of sale
• 60.00 RM

• Mentioned in
• Telefunken Kraftverstärker und Zubehör, 15.Juni 1931

• Literature/Schematics (1)
• Katalog Radio-Zentrale Prohaska 1931/32 (S. 70)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
