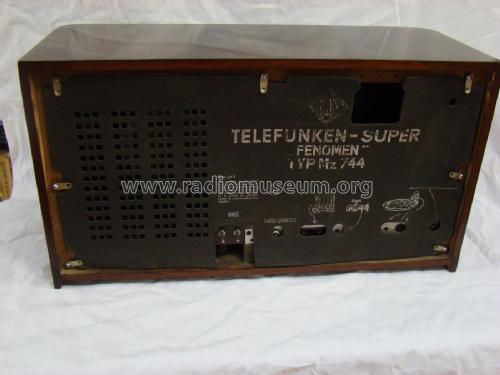

Fenomen Mz 744

Fenomen Mz 744; Telefunken - Krajowe (ID = 248757) Radio Fenomen Mz 744; Telefunken - Krajowe (ID = 248759) Radio
Fenomen Mz 744; Telefunken - Krajowe (ID = 249582) Radio Fenomen Mz 744; Telefunken - Krajowe (ID = 2552917) Radio
Use red slider bar for more.
Fenomen Mz 744; Telefunken - Krajowe (ID = 248757) Radio
Telefunken - Krajowe: Fenomen Mz 744 [Radio] ID = 248757 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fenomen Mz 744, Telefunken - Krajowe Zaklady, Warszawa

Country:  Poland
Manufacturer / Brand:  Telefunken - Krajowe Zaklady, Warszawa
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ACH1 AF7 RES164 RGN354
schematic requested
Main principle Superhet, IF regeneration; ZF/IF 465 kHz; 1 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 150; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org Model: Fenomen Mz 744 - Telefunken - Krajowe Zaklady,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 300 x 230 mm / 21.3 x 11.8 x 9.1 inch
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 340.00 zl
Source of data - - Data from my own collection
Mentioned in Zlote Lata Radia, Polen

Model page created by Andrzej Cieslak. See "Data change" for further contributors.
