Hi Fi Lautsprecher Box TL90
Use red slider bar for more.

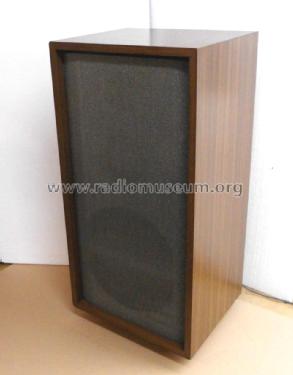

Telefunken: Hi Fi Lautsprecher Box TL90 [Speaker-P] ID = 2601647 989x1263
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1970–1973 | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | 3 Loudspeakers |
| Power out | 50 W (65 W max.) |
| from Radiomuseum.org | Model: Hi Fi Lautsprecher Box TL90 - Telefunken Deutschland TFK, |
| Material | Wooden case |
| Shape | Console with any shape - in general |
| Dimensions (WHD) | 350 x 700 x 300 mm / 13.8 x 27.6 x 11.8 inch |

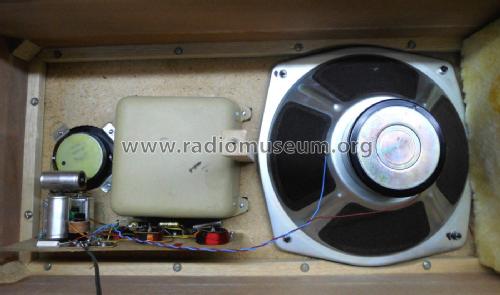

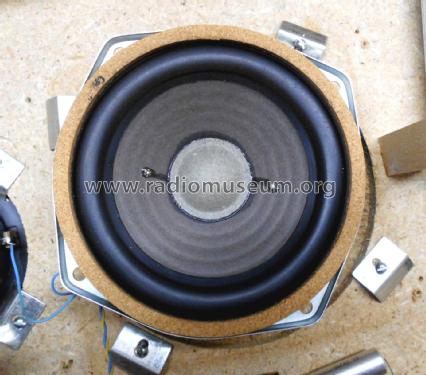

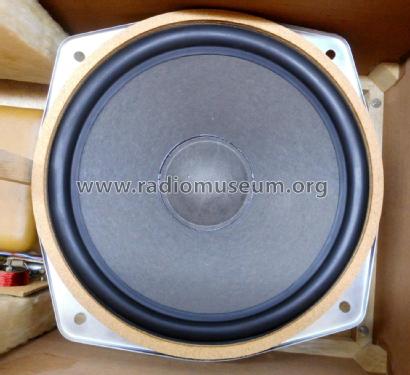

| Notes | Telefunken HiFi-Stand-Lautsprecherbox TL 90 Das Spitzenmodell von Telefunken ab 1970 Dreiwegsystem, geschlossen, mit 3 Lautsprechern,

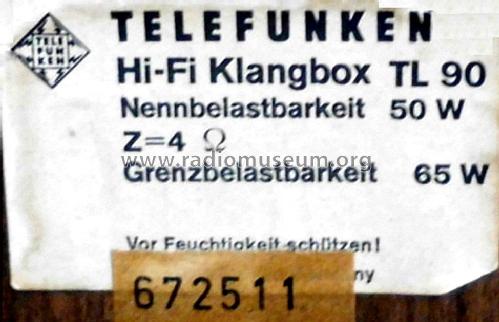

Nennbelastbarkeit 50 W, Musikbelstbarkeit 65 W, Übertragungsbereich 25 - 20.000 Hz, Impedanz 4 Ω, Gehäusevolumen (brutto) 75 l. Gehäusefarbe Nußbaum oder perlweiß. |
| Price in first year of sale | 398.00 DM |

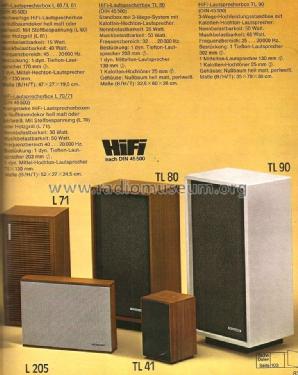

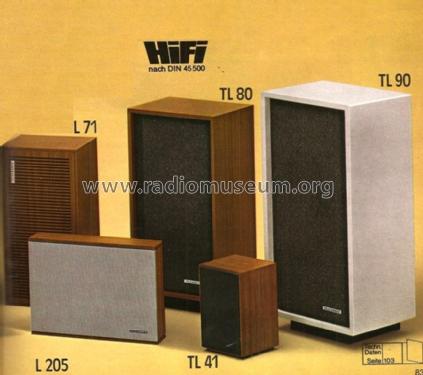

| Source of data | -- Original prospect or advert |
| Mentioned in | Original Telefunken Service Unterlagen |
| Literature/Schematics (1) | Telefunken Report 1970 bis 1973, Preis aus Geräte u. Zubehör 1972 |
| Literature/Schematics (2) | Handbuch VDRG 1970/1971 |
| Literature/Schematics (3) | Handbuch VDRG 1971/1972 |
| Literature/Schematics (4) | Handbuch VDRG 1972/1973 |
Model page created by Josef Pilz. See "Data change" for further contributors.
