HiFi Cassettendeck HC 700
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1984
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 188988

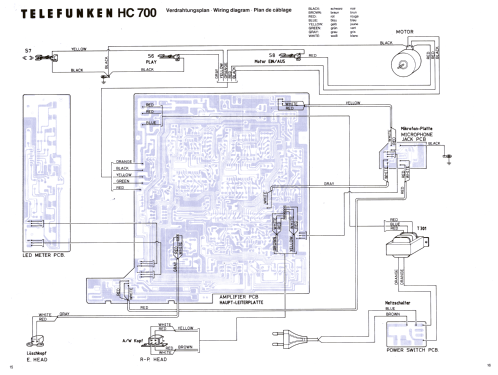

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player; Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: HiFi Cassettendeck HC 700 - Telefunken Deutschland TFK,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 440 x 110 x 267 mm / 17.3 x 4.3 x 10.5 inch
- Notes
-
Telefunken Frontloading HiFi Cassetten Deck Modell HC 700.
Metallband tauglich
40-14000 Hz (CrO2-Band)
HIGH COM und Dolby B NR
2 Aussteuerungs-Anzeigen über LED-Ketten, mit bewerteter Spitzen-Anzeige
Auto Shut Off
Mikrofoneingang
Ausführung:
Metallgehäuse in metallic-braun mit Metall/Rauchglas-Front in Silber-Metallic
Info:
Baustein der HiFi-Anlage Telefunken R 700 bestehend aus
Telefunken HR 700 - 3Band Stereo Receiver
Telefunken HC 700 - Cassetten Deck und
Telefunken HS 700 - HiFi Plattenspieler
Optional:
Telefunken HL 700 - 2-Weg Lautsprecher System
Telefunken HiFi-Rack 850 (485x960x385mm)
- Net weight (2.2 lb = 1 kg)
- 4.1 kg / 9 lb 0.5 oz (9.031 lb)
- Source of data
- - - Data from my own collection
- Mentioned in
- -- Original prospect or advert (Telefunken Katalog - Programm 1985)
- Author
- Model page created by Günter Döring. See "Data change" for further contributors.
