• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1973

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 161691

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Power out
• 15 W (30 W max.)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Hi-Fi Klangbox L20 - Telefunken Deutschland TFK,

• Shape

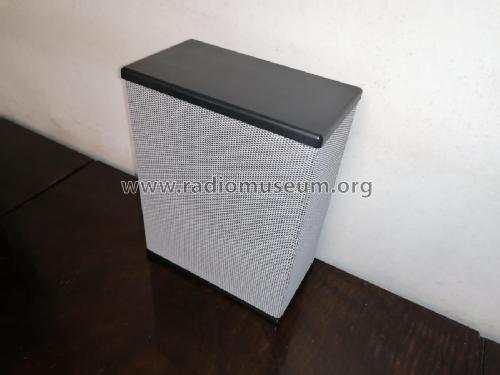

• Book-shelf unit.

• Dimensions (WHD)
• 248 x 196 x 109 mm / 9.8 x 7.7 x 4.3 inch

• Notes

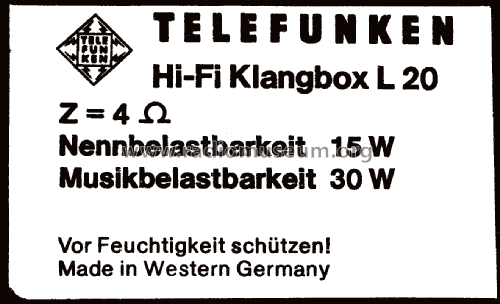

• Tieftonlautsprecher 130 mm, Mittel-Hochtonlautsprecher 75 x 170 mm; Nennbelastbarkeit 15 Watt, Musikbelastbarkeit 30 Watt.

  Holzgehäuse mit Stoffüberzug.

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• Original Telefunken Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
