HiFi-Lautsprecherbox TL 410
Use red slider bar for more.
Telefunken: HiFi-Lautsprecherbox TL 410 [Speaker-P] ID = 2117517 802x1028
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1976–1979 | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | 2 Loudspeakers |
| Power out | 35 W (50 W max.) |
| from Radiomuseum.org | Model: HiFi-Lautsprecherbox TL 410 - Telefunken Deutschland TFK, |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 197 x 278 x 140 mm / 7.8 x 10.9 x 5.5 inch |

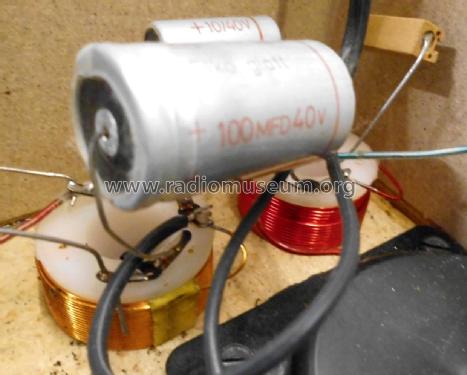

| Notes | Telefunken HiFi Lautsprecherbox TL 410 2-Wege-Box nach DIN 45500, 8 l Volumen, Impedanz 4 Ohm, Übernahmefrequenz der Weiche 2.000Hz, Anschlusskabel 5 m, Normstecker (LS7).
Gehäuseausführungen: Nussbaum hell; perlweiss und später auch mattschwarz |
| Source of data | - - Manufacturers Literature |
| Mentioned in | -- Original prospect or advert (Telefunken Report 1976/77, Report 1978/79) |
Model page created by Mark Hippenstiel. See "Data change" for further contributors.
