Integrated HiFi Stereo Amplifier TA-750; Telefunken (ID = 1766936) Ampl/Mixer
Telefunken: Integrated HiFi Stereo Amplifier TA-750 [Ampl/Mixer] ID = 1766936 1400x656

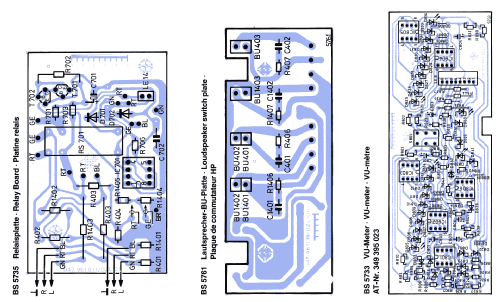

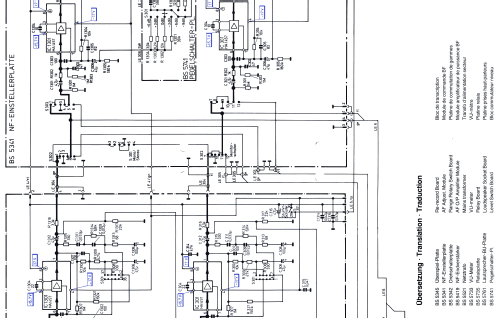

Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated HiFi Stereo Amplifier TA-750, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1979/1980 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 15: BF254 BD237 BD238 BC307 BC237 BD312 BD311 HA1457 NE555 MC1458 LM391 µA78G U237B U247B
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 180 W (260 W max.)
from Radiomuseum.org Model: Integrated HiFi Stereo Amplifier TA-750 - Telefunken Deutschland TFK,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 460 x 145 x 380 mm / 18.1 x 5.7 x 15 inch
Notes

Output power:

  • 2 x 90 W RMS at 4 ohms
  • 2 x 130 W peak at 4 ohms
  • 2 x 60 W RMS at 8 ohms
  • 2 x 80 W peak at 8 ohm.

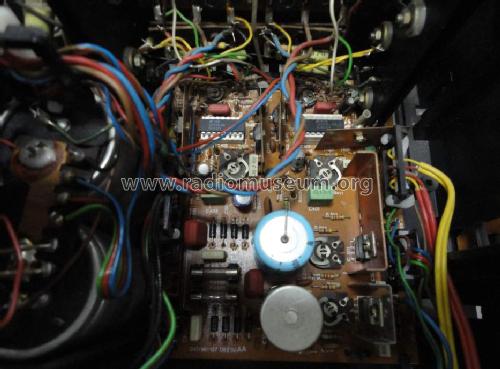

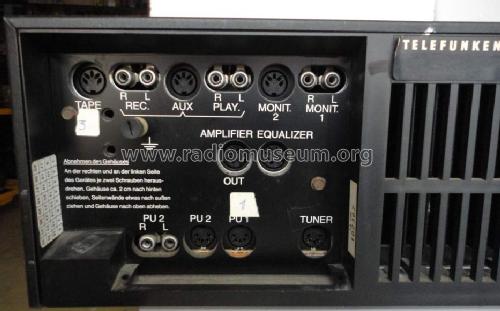

Input connectors:

  • microphone (DIN-5 and 6.3 mm jack at the front)
  • 2 x stereo phono input (1 x cinch, 2 x DIN-5)
  • tuner (DIN-5)
  • tape (DIN-5)
  • headphone (DIN-6 and 6.3 mm jack at the front, ampflified).

There are also outputs for two monitors, an additional amplifier output, an equalizer output, a tape-out output and the speaker connections with wire-clamps and a DIN speaker plug. Those speaker outputs can be switched or used simultaneously.

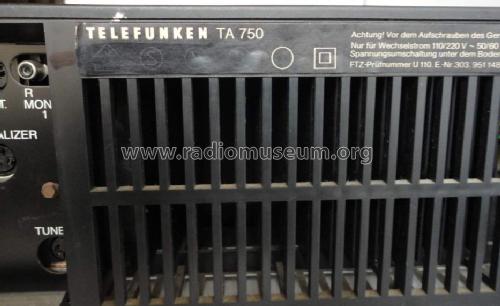

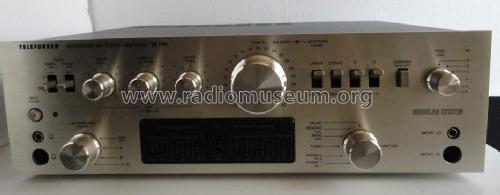

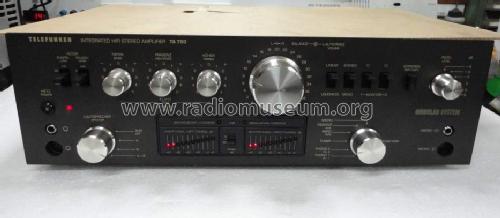

Front panel elements (clockwise from power switch):

  • bass-enhance filter (for 20 Hz or 100 Hz)
  • high-reducing filter (5 kHz or 10 kHz)
  • three-band equalizer (controls for left and right channels separate)
  • volume and balance knob
  • "Linear-Loudness" switch
  • "Stereo/Mono" switch
  • two switches for amp bypass and monitor output
  • tape-copy button
  • level knob (from -9 dB to +6 dB)
  • microphone input connectors
  • input selector
  • VU meter with customizable gain (0 or -20 dB)
  • output selector
  • headphone connectors

The device has a total of 15 transistors and 19 ICs, they are listed once per type.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data -- Original prospect or advert

Model page created by Ignacio Rodriguez-Rodriguez. See "Data change" for further contributors.
