• Year
  • 1978 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 78578

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

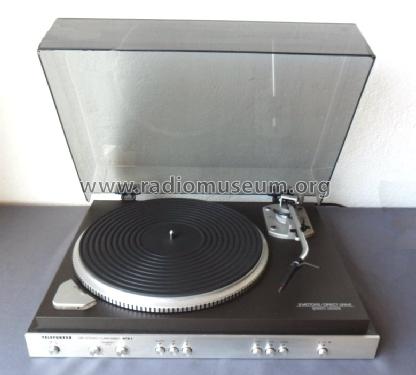

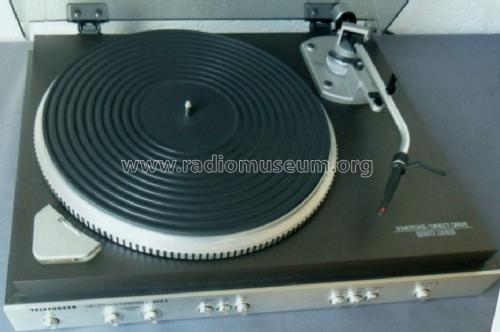

  • Model: HiFi Stereo Turntable STS1 - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 450 x 130 x 360 mm / 17.7 x 5.1 x 14.2 inch
  • Notes

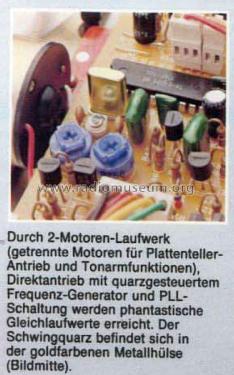

  • two Motors, Direkt-Drive, Pitch-Control, Anti Skating, 33/45 upm, Quartz Locked, Repeat Funktion, Stroboscope.
  • Net weight (2.2 lb = 1 kg)
  • 9.5 kg / 20 lb 14.8 oz (20.925 lb)
  • Author
  • Model page created by Peter Böhm. See "Data change" for further contributors.
