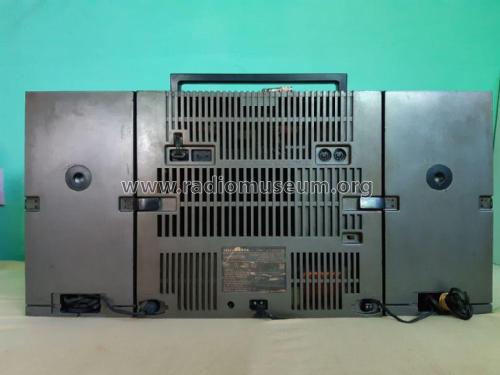

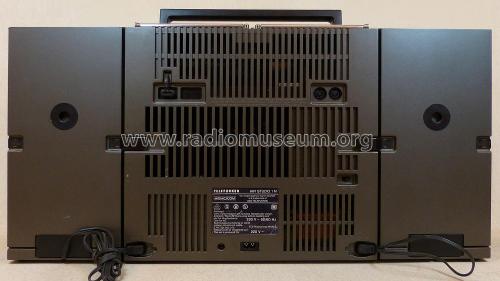

HiFi-Studio 1M

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1981

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103207

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 58

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 5 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 8×1,5 Volt

• Loudspeaker
• 6 Loudspeakers

• Power out
• 60 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: HiFi-Studio 1M - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 638 x 315 x 167 mm / 25.1 x 12.4 x 6.6 inch

• Notes

• 8 ICs, 44 Dioden. Auch für Metallcassetten, mit HIGHCOM-Rauschunterdrückung.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 1,500.00 DM

• Mentioned in
• -- Original prospect or advert (Telefunken HiFi-Programm 1981-82)

• Author
• Model page created by Karlheinz Meyer. See "Data change" for further contributors.
