HiFi Verstärker HA-680

HiFi Verstärker HA-680; Telefunken (ID = 1534117) Ampl/Mixer
Use red slider bar for more.
HiFi Verstärker HA-680; Telefunken (ID = 1534117) Ampl/Mixer

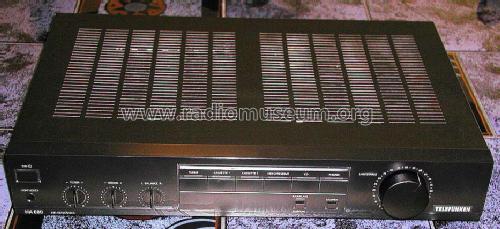

Telefunken: HiFi Verstärker HA-680 [Ampl/Mixer] ID = 1534117 933x428
Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi Verstärker HA-680, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1992 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: HiFi Verstärker HA-680 - Telefunken Deutschland TFK,
Material Metal case
Shape Tablemodel, low profile (big size).
Notes

HiFi-Verstärker, 100 W, Surround (Quadro).

Model page created by Reinhard Riek. See "Data change" for further contributors.
