High Fidelity Stereo ELA V811

High Fidelity Stereo ELA V811; Telefunken (ID = 1586180) Ampl/Mixer High Fidelity Stereo ELA V811; Telefunken (ID = 1586181) Ampl/Mixer
High Fidelity Stereo ELA V811; Telefunken (ID = 1586182) Ampl/Mixer High Fidelity Stereo ELA V811; Telefunken (ID = 1586183) Ampl/Mixer
High Fidelity Stereo ELA V811; Telefunken (ID = 1586184) Ampl/Mixer High Fidelity Stereo ELA V811; Telefunken (ID = 1586185) Ampl/Mixer
High Fidelity Stereo ELA V811; Telefunken (ID = 1586186) Ampl/Mixer High Fidelity Stereo ELA V811; Telefunken (ID = 1586187) Ampl/Mixer
High Fidelity Stereo ELA V811; Telefunken (ID = 1586188) Ampl/Mixer High Fidelity Stereo ELA V811; Telefunken (ID = 1586189) Ampl/Mixer
Use red slider bar for more.

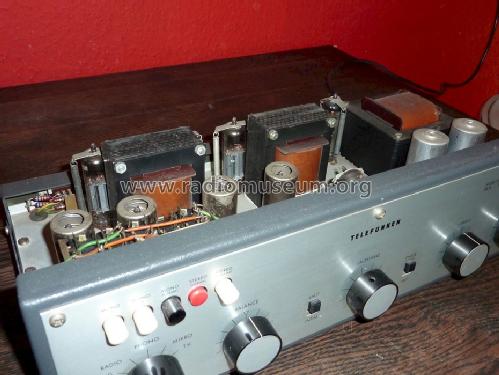

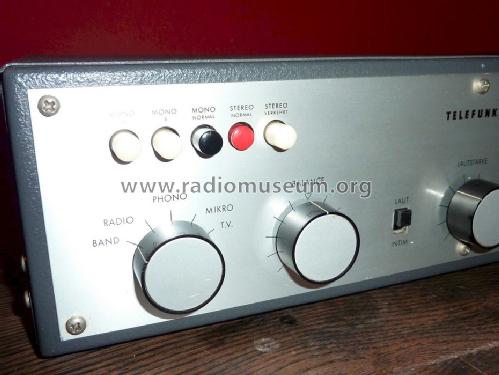

High Fidelity Stereo ELA V811; Telefunken (ID = 1586180) Ampl/Mixer
Telefunken: High Fidelity Stereo ELA V811 [Ampl/Mixer] ID = 1586180 932x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model High Fidelity Stereo ELA V811, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Ebay auction by user bleue_note 111235345537

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1963 ? Category: Audio Amplifier or -mixer
Valves / Tubes 10: ECC808 ECC808 ECC808 ECC808 ECC808 ECL82 ECL82 ECL82 ECL82 EZ81
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: High Fidelity Stereo ELA V811 - Telefunken Deutschland TFK,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 410 x 120 x 200 mm / 16.1 x 4.7 x 7.9 inch
Notes

Verstärker Ela V811 gefertigt von Klein + Hummel für Telefunken.
Siehe auch technisch identisches Modell Telewatt Stereo-Nova VS56.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
