• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1982–1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111910

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 450/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

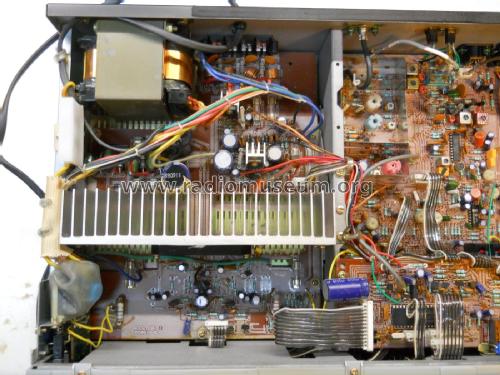

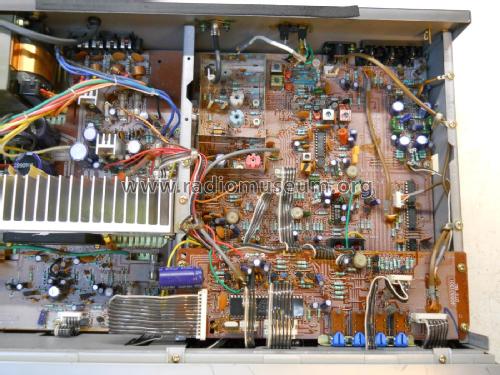

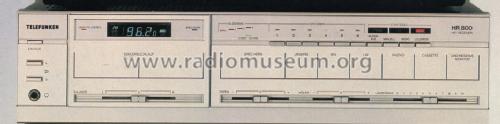

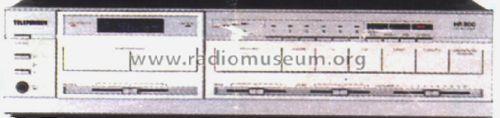

• Model: HiFi Receiver HR800 - Telefunken Deutschland TFK,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 110 x 280 mm / 17.3 x 4.3 x 11 inch

• Notes
• Receiver, Quarz-Synthesizer, 12 Sender-Speicher, Sendersuchlauf, digitale Frequenzanzeige, 2× 30 / 50 W Ausgangsleistung an 8 Ohm.

• Price in first year of sale
• 799.00 DM

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
