For model Jubilate 301A 10 Trans., Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1970/1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF222 BF222 BF153 BF222 BF222 BF153 BC115 BC225 AC184 AC185
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Jubilate 301A [10 Trans.] - Telefunken Deutschland TFK,
Material Plastics (no bakelite or catalin)
Notes Telefunken Jubilate 301A;
Dioden: SFD80, 2x AA123, AA121, PTO/3K

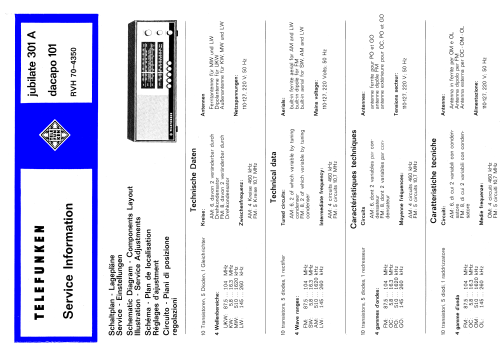

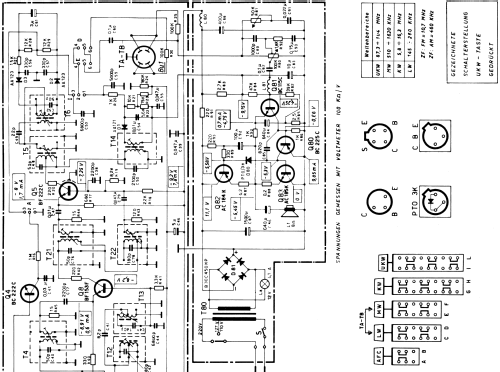

Literature/Schematics (1) -- Original-techn. papers.
