Jubilate 401

Jubilate 401; Telefunken (ID = 428323) Radio

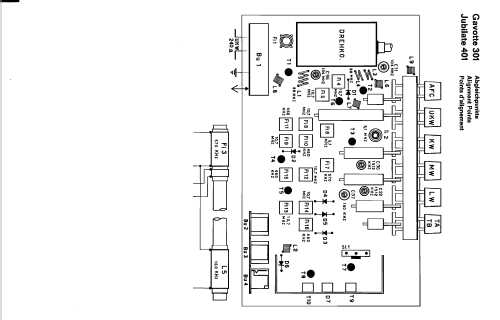

Jubilate 401; Telefunken (ID = 202071) Radio

Jubilate 401; Telefunken (ID = 202073) Radio

Jubilate 401; Telefunken (ID = 202075) Radio

Jubilate 401; Telefunken (ID = 202082) Radio

Jubilate 401; Telefunken (ID = 1948317) Radio

Jubilate 401; Telefunken (ID = 1948318) Radio

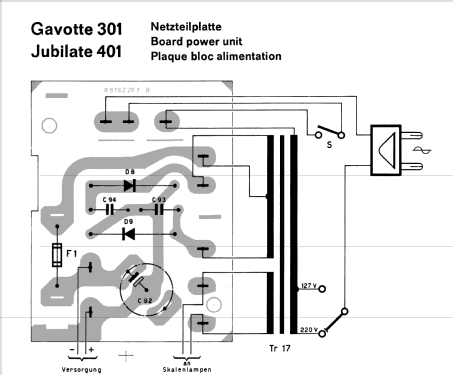

Jubilate 401; Telefunken (ID = 1948339) Radio

Jubilate 401; Telefunken (ID = 2087103) Radio

Jubilate 401; Telefunken (ID = 2087104) Radio
Jubilate 401; Telefunken (ID = 2561942) Radio Jubilate 401; Telefunken (ID = 428319) Radio

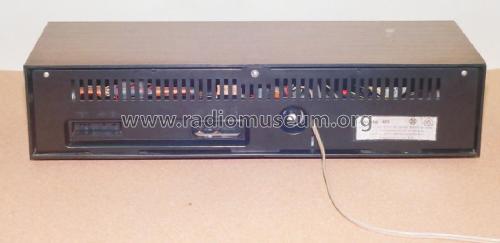

Jubilate 401; Telefunken (ID = 428320) Radio Jubilate 401; Telefunken (ID = 428317) Radio

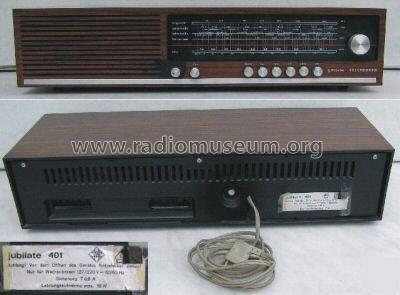

Jubilate 401; Telefunken (ID = 125017) Radio Jubilate 401; Telefunken (ID = 428318) Radio
Jubilate 401; Telefunken (ID = 428321) Radio Jubilate 401; Telefunken (ID = 1225218) Radio

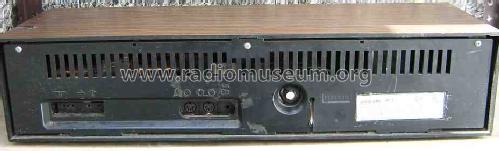

Jubilate 401; Telefunken (ID = 1225219) Radio Jubilate 401; Telefunken (ID = 1225220) Radio
Use red slider bar for more.

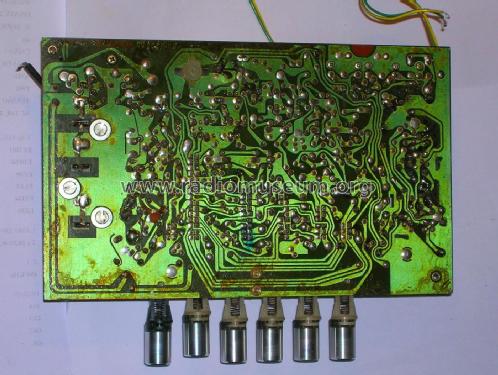

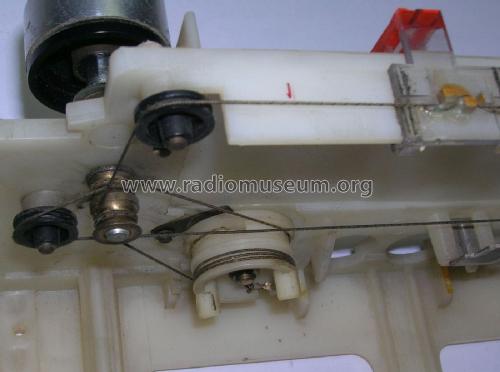

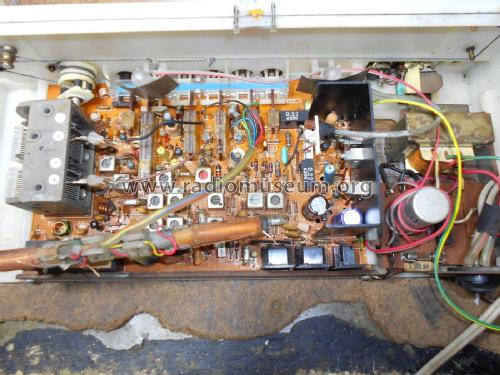

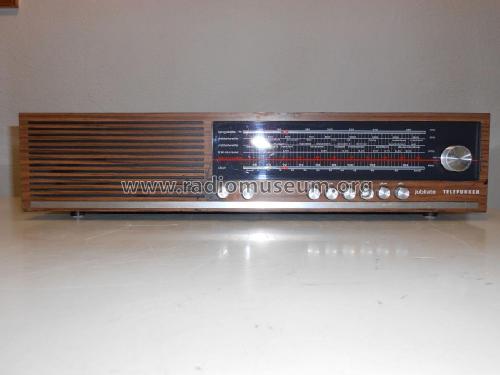

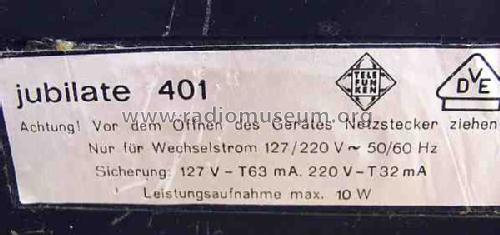

Jubilate 401; Telefunken (ID = 2561942) Radio

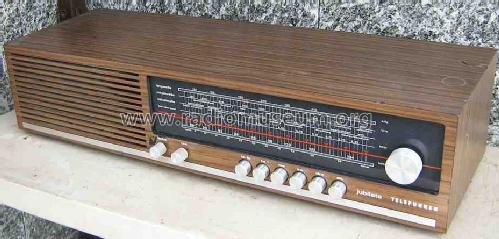

Telefunken: Jubilate 401 [Radio] ID = 2561942 1400x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jubilate 401, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1971–1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF235 BF235 BF234 BF233 BF234 BSW43 BC209 BC205 AC180 AC181
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Jubilate 401 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 530 x 115 x 180 mm / 20.9 x 4.5 x 7.1 inch
Notes

Gespreiztes 49-m-Band.

Die Handbücher VDRG 1971/72 und 1972/73 nennen irrtümlich
die Abmessungen 620 x 134 x 190 mm

Net weight (2.2 lb = 1 kg) 3.225 kg / 7 lb 1.7 oz (7.104 lb)
External source of data Erb
Source of data Handbuch VDRG 1971/1972
Mentioned in Handbuch VDRG 1972/1973
Literature/Schematics (1) -- Original-techn. papers.

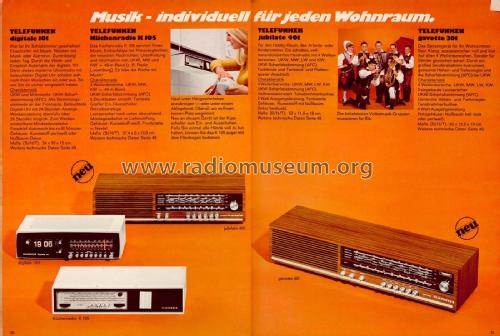

Literature/Schematics (2) -- Original prospect or advert (Telefunken Gesamtprogramm 1971/72, S.51)
