- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 263987
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); Export model
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Dry Batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.5 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

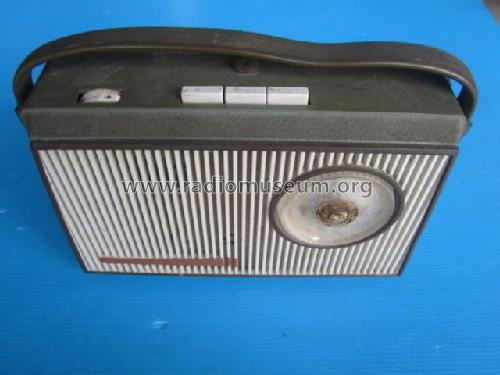

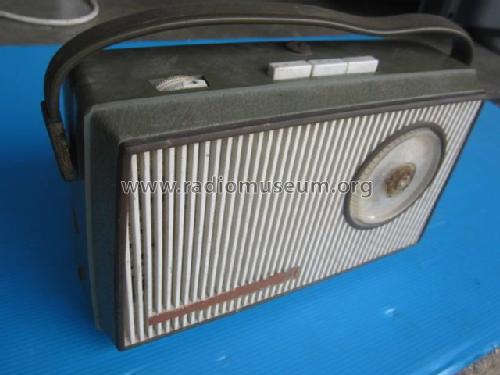

- Model: Kavalier unbekannt - Telefunken Deutschland TFK,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 9.9 x 6 x 3.5 inch / 251 x 152 x 89 mm
- Notes
-
Telefunken Kavalier (Name nicht gesichert, Typ unbekannt) mit Lang- Mittel- und Kurzwelle.
Siehe auch z.B. Kavalier mit LW, MW und UKW-Empfang.
- Net weight (2.2 lb = 1 kg)
- 2.1 kg / 4 lb 10 oz (4.626 lb)
- Author
- Model page created by Abu Bakar. See "Data change" for further contributors.
